Fig. 1: Transport property and electronic structure of 1T-TaS2.
From: Band insulator to Mott insulator transition in 1T-TaS2

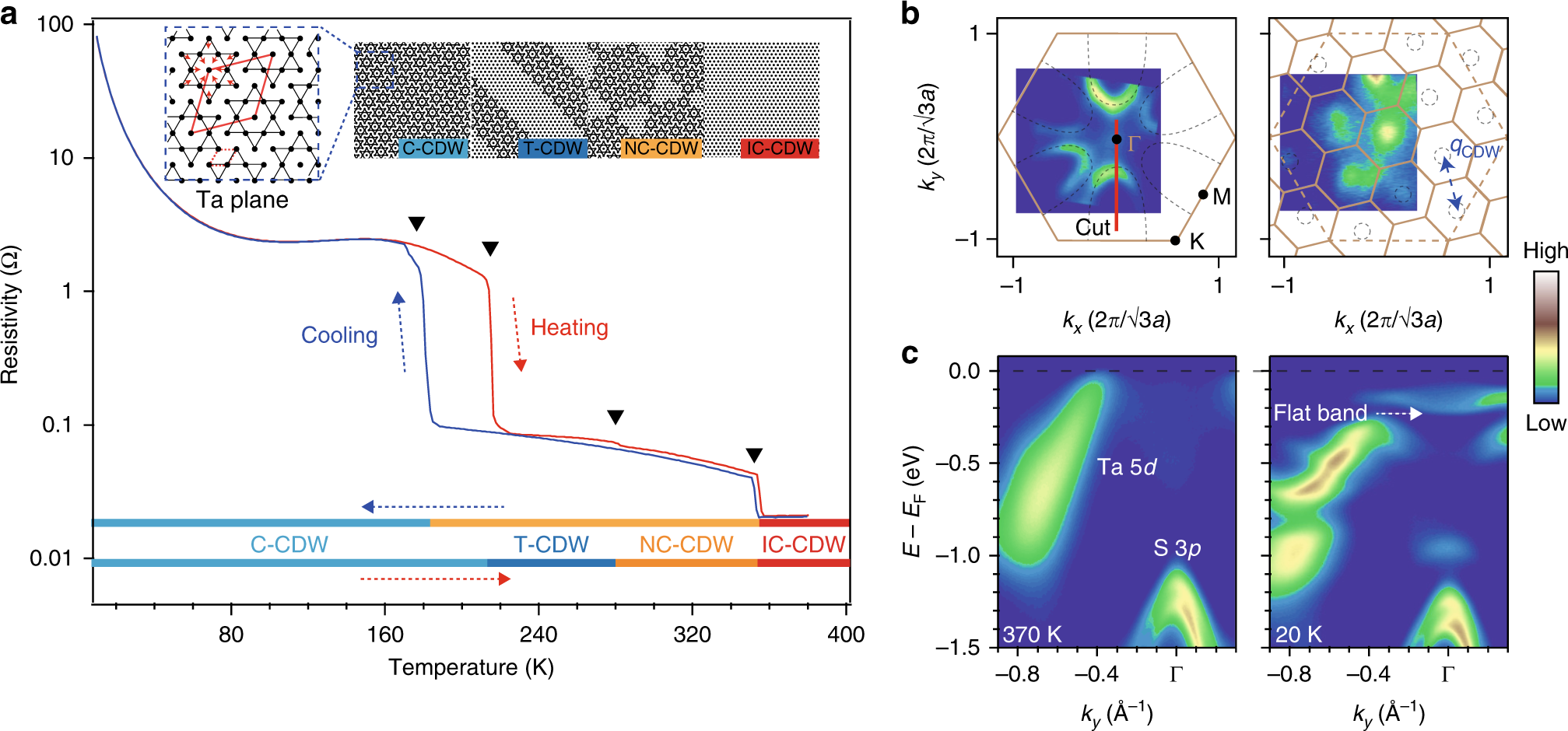

a Temperature dependence of in-plane resistivity taken upon heating and cooling. The black arrows mark the first-order transition points. The bars below the curves indicate temperature intervals corresponding to the different phases. Inset panels in a are schematic illustrations for the in-plane lattice modulations in the commensurate CDW (C-CDW) phase, nearly commensurate CDW (NC-CDW) phase, Triclinic CDW (T-CDW) phase, and In-commensurate CDW (IC-CDW) phase, respectively. The SD clusters are marked with the dark outlines. Black dots stand for the Ta atoms. b and c Fermi surface mappings and corresponding high symmetry cuts taken at 370 and 20 K, respectively. The cut momenta are illustrated as a red line in b.
