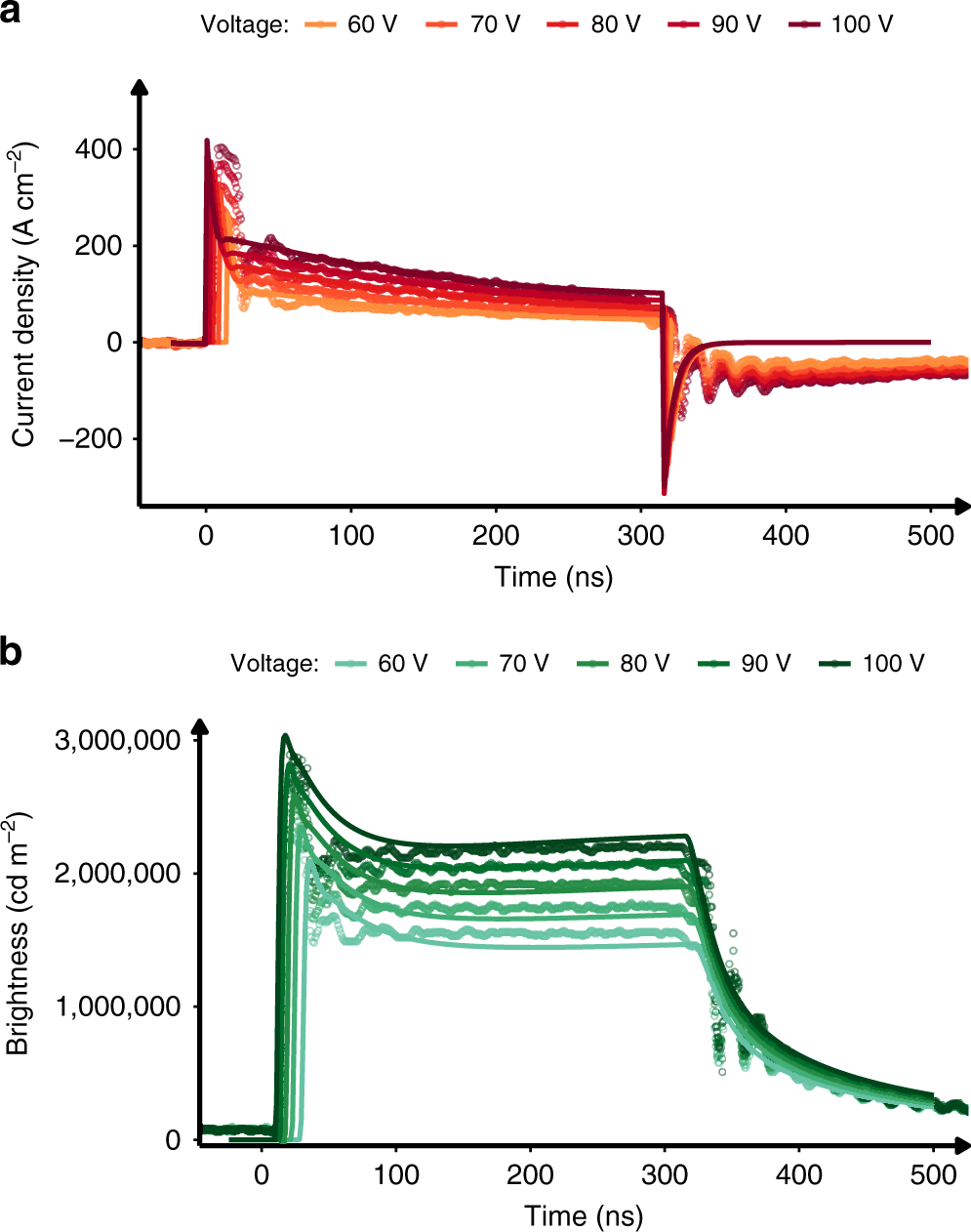

Fig. 2: Simulated and experimental OLED response to pulse input.
From: Charge and exciton dynamics of OLEDs under high voltage nanosecond pulse: towards injection lasing
a Current. b Brightness. Simulated and experimental response of the OLED subjected to the 300-ns voltage pulses with amplitudes varying from 60 to 100 V.
