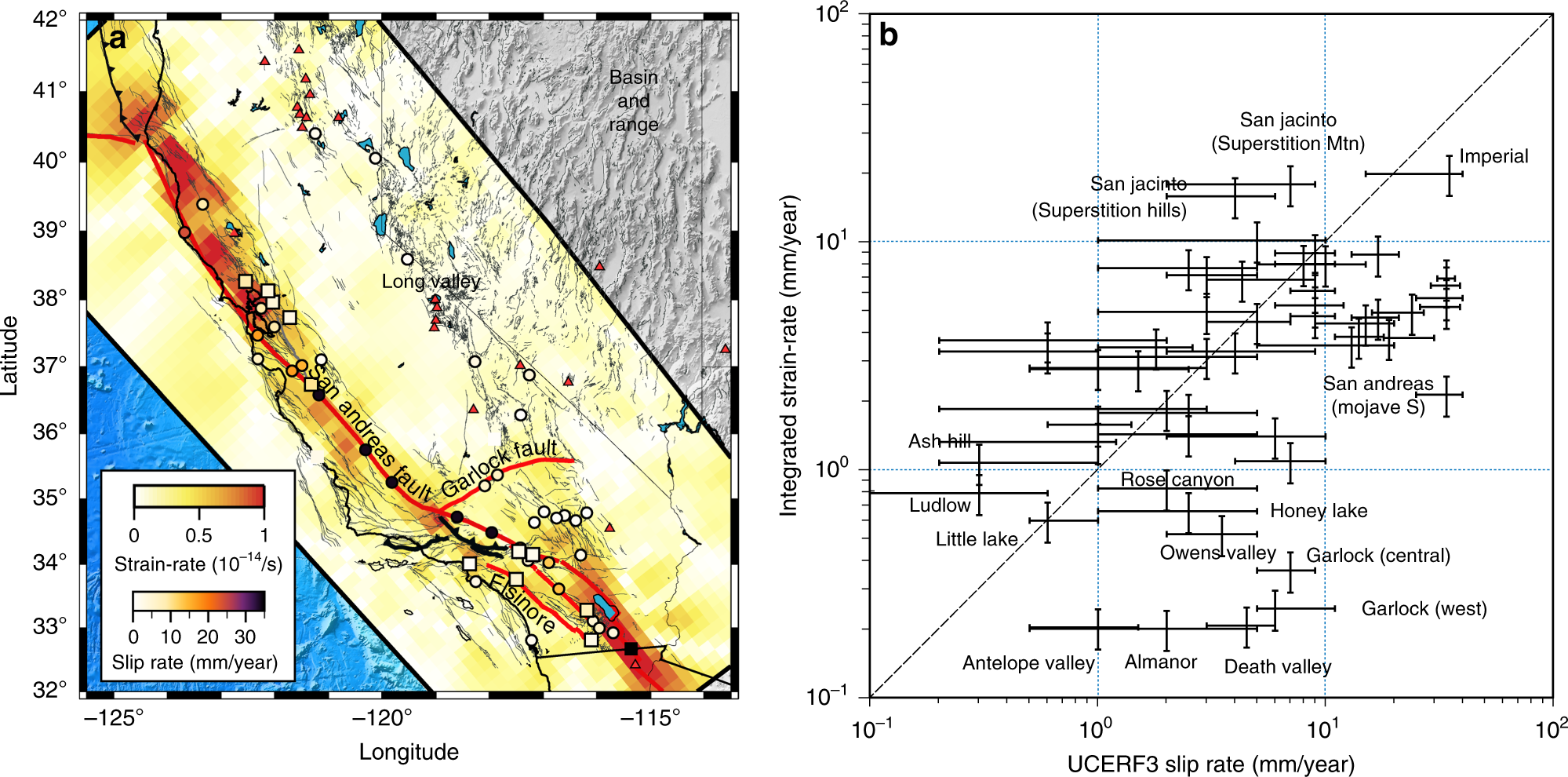

Fig. 8: Anelastic strain accumulation and long-term slip-rate on California faults.
From: Mantle flow distribution beneath the California margin
a Spatial distribution of distributed strain and the location of paleo slip-rate on strike-slip fault segments cataloged in Appendix B of the Uniform California Earthquake Rupture Forecast (UCERF3; https://pubs.usgs.gov/of/2013/1165/). The squares indicate locations where the deep strain-rate immediately below the fault segment matches the long-term fault slip rate. Red triangles indicate quaternary volcanos. b Comparison of the UCERF3 slip rates with the integrated strain-rate below the corresponding fault segment.
