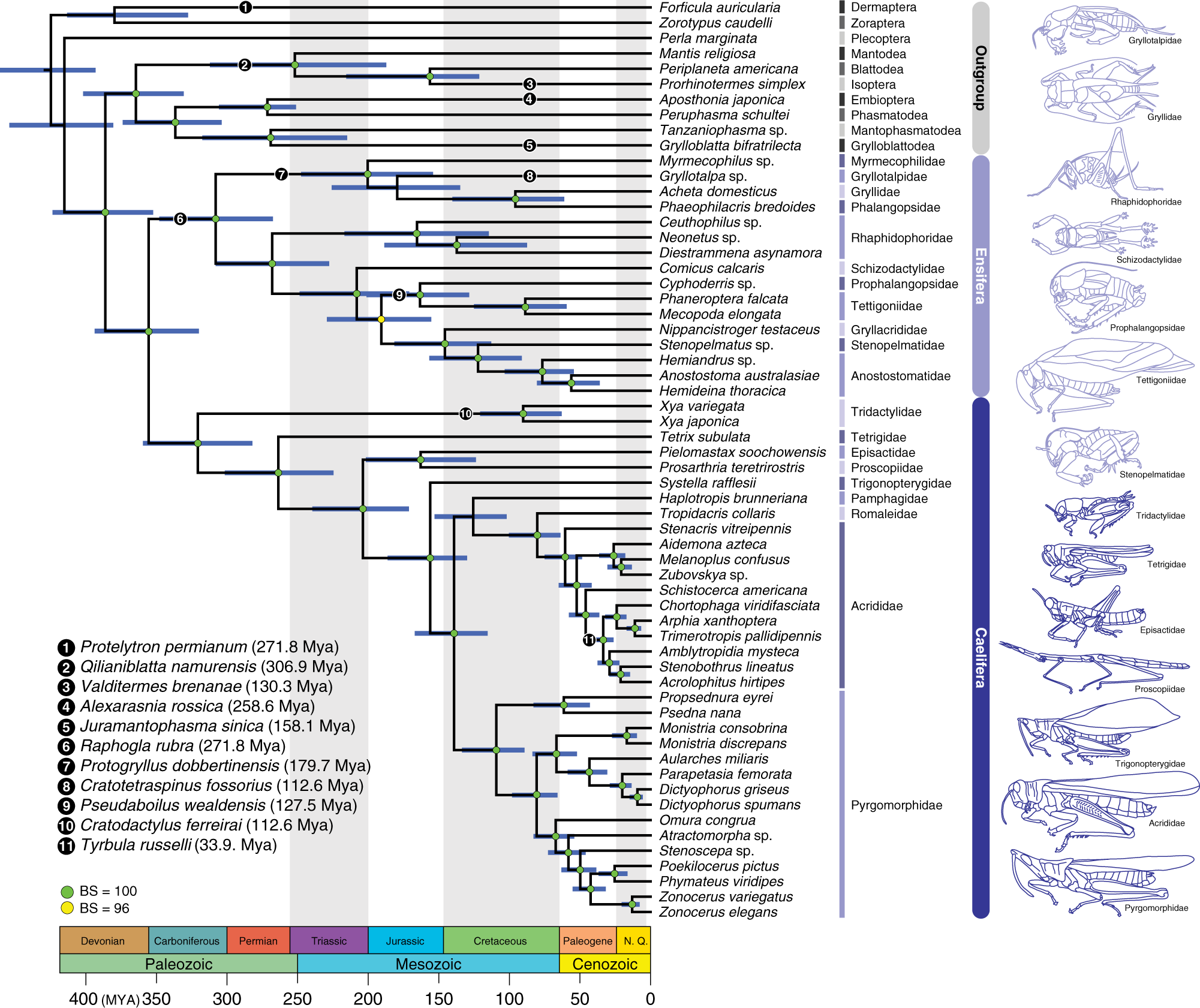

Fig. 1: Dated phylogeny of Orthoptera based on the phylogenomic data.

From: Phylogenomic analysis sheds light on the evolutionary pathways towards acoustic communication in Orthoptera

Fig. 1: Dated phylogeny of Orthoptera based on the phylogenomic data.The alt text for this image may have been generated using AI.

This chronogram is a result of a divergence time estimate analysis based on the most decisive data set (Daa,trans,strict) consisting of 436,488 aligned amino acids. Bootstrap support (BS) values are indicated by coloured nodes (green: BS = 100; yellow: BS = 96); values below 90 are not shown. Divergence time estimates were calculated using 86,043 amino-acid sites and 11 fossil calibrations (species names and dates listed on figure). Blue bars indicate 95% credibility intervals of node ages. Geological timescale is shown at the bottom. Additional details on data generation and analyses can be found in Supplementary Methods 1 and 2.
