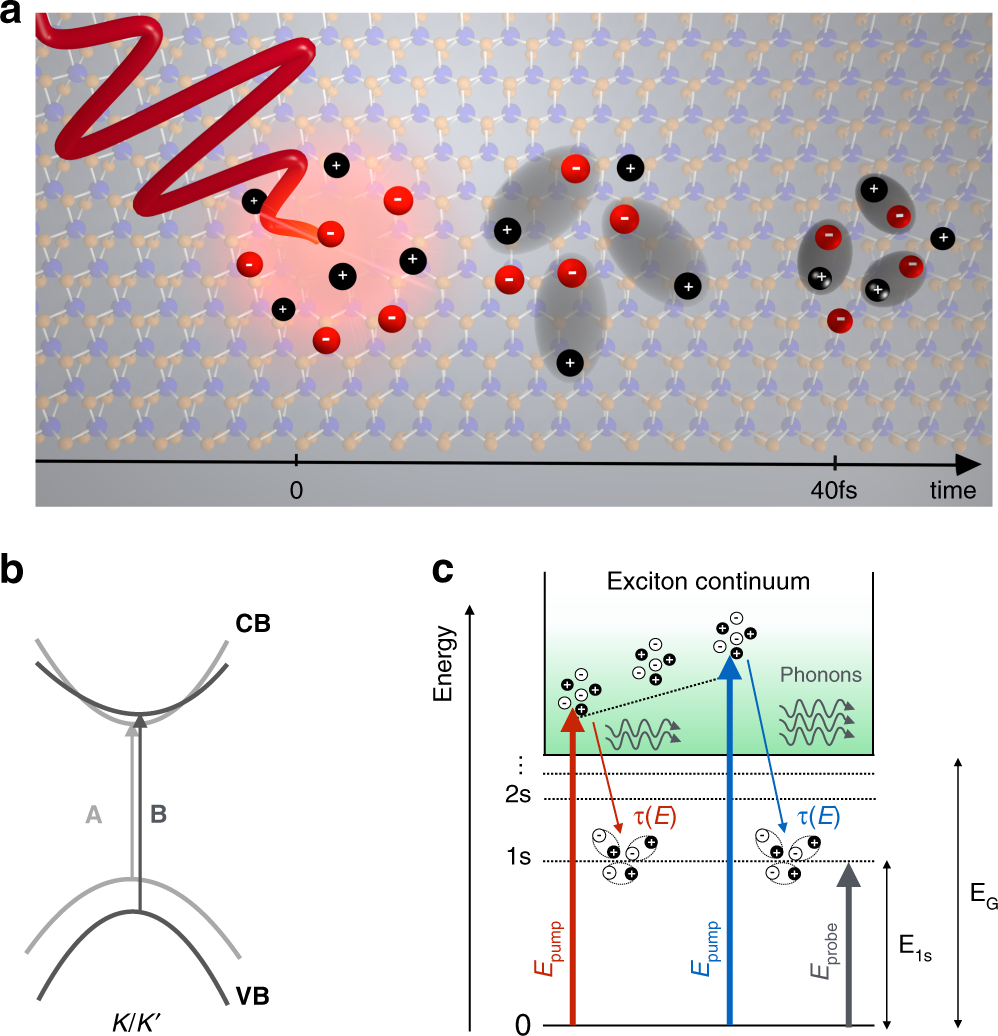

Fig. 1: Exciton formation process in 1L-MoS2.
From: The ultrafast onset of exciton formation in 2D semiconductors
a Cartoon of the exciton formation process after photo-injection of free electron-hole pairs. b Schematic illustration of the single particle band structure of 1L-MoS2 at the K/K' points. The two arrows represent A/B excitonic transitions, split due to the strong spin-orbit interaction at the K/K' points of the Brillouin zone. c Sketch of the pump-probe experiment. A few-optical-cycle laser pulse injects free electron/hole pairs at increasing energies above the exciton continuum (EG). These quasiparticles lose their initial kinetic energy and scatter down via a cascade process mediated by phonons to lower-lying discrete excitonic states until they reach the 1s excitonic state. The timescale τ(E) of this relaxation process is determined by measuring the absorption change of a probe beam, tuned on resonance with the 1s state, due to the Pauli blocking effect.
