Fig. 2: Two-electron coincidence map.

From: Attosecond electron–spin dynamics in Xe 4d photoionization

Fig. 2

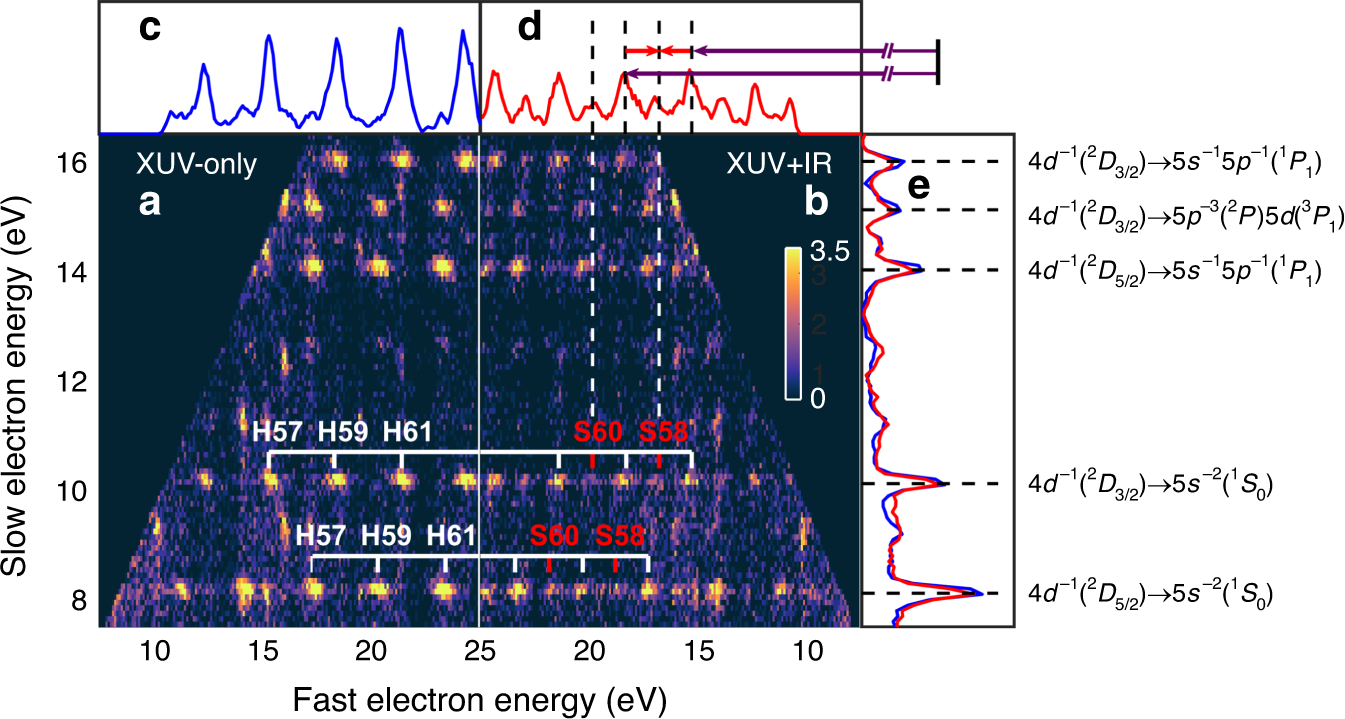

The coincidence map using a XUV field only and b XUV+IR fields. The number of measured two-electron pairs is indicated by the color code. The spots with constant slow-electron energy and variable fast-electron energy correspond to photoelectrons created by absorption of consecutive harmonics (labeled as H57-H61 in (a) as an example) and a given Auger electron (e.g., 4d−1(2D3/2) → 5s−2(1S0)). Photoelectrons corresponding to absorption or emission of an additional IR photon (sidebands, labeled as S58 and S60 as an example) appear in b. The projection on the fast electron energy axis c and d is the sum of the signal with slow electron energy from 10 eV to 10.4 eV, i.e., the photoelectrons in coincidence with 4d−1(2D3/2) → 5s−2(1S0) Auger electrons. The projection on the slow electron energy axis e shows the sum of the signal for the different Auger processes indicated on the right, with (red) and without (blue) IR field. A RABBIT energy scheme is indicated at the top of d.
