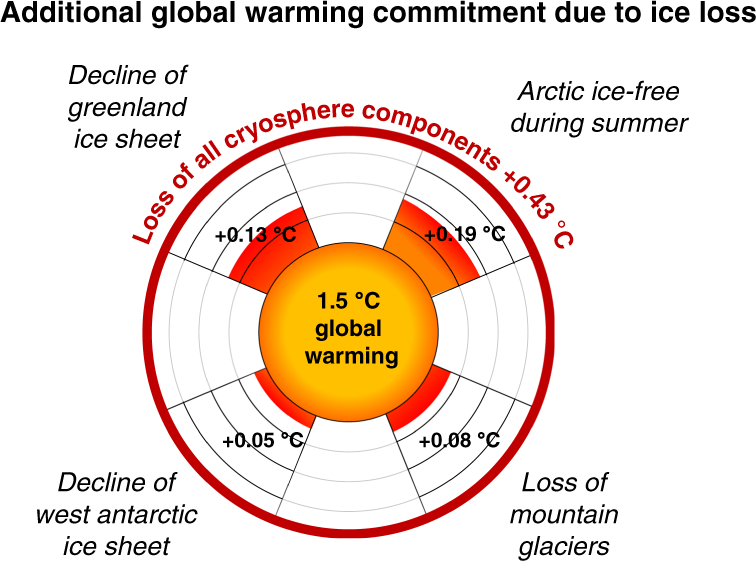

Fig. 2: GMT increase through disappearance of cryosphere elements.
From: Global warming due to loss of large ice masses and Arctic summer sea ice
The additional warming for the cryosphere components is shown for a scenario consistent with global warming levels of 1.5 °C. Radially outward, the temperature anomaly is displayed which arises from the disappearance of the cryosphere elements. The thick dark red line indicates the maximum effect of additional warming in case all cryosphere elements lose stability. All values are the medians of the ensemble.
