Fig. 3: Calculated energetic terms and the mean square deviations.

From: Xenon iron oxides predicted as potential Xe hosts in Earth’s lower mantle

Fig. 3

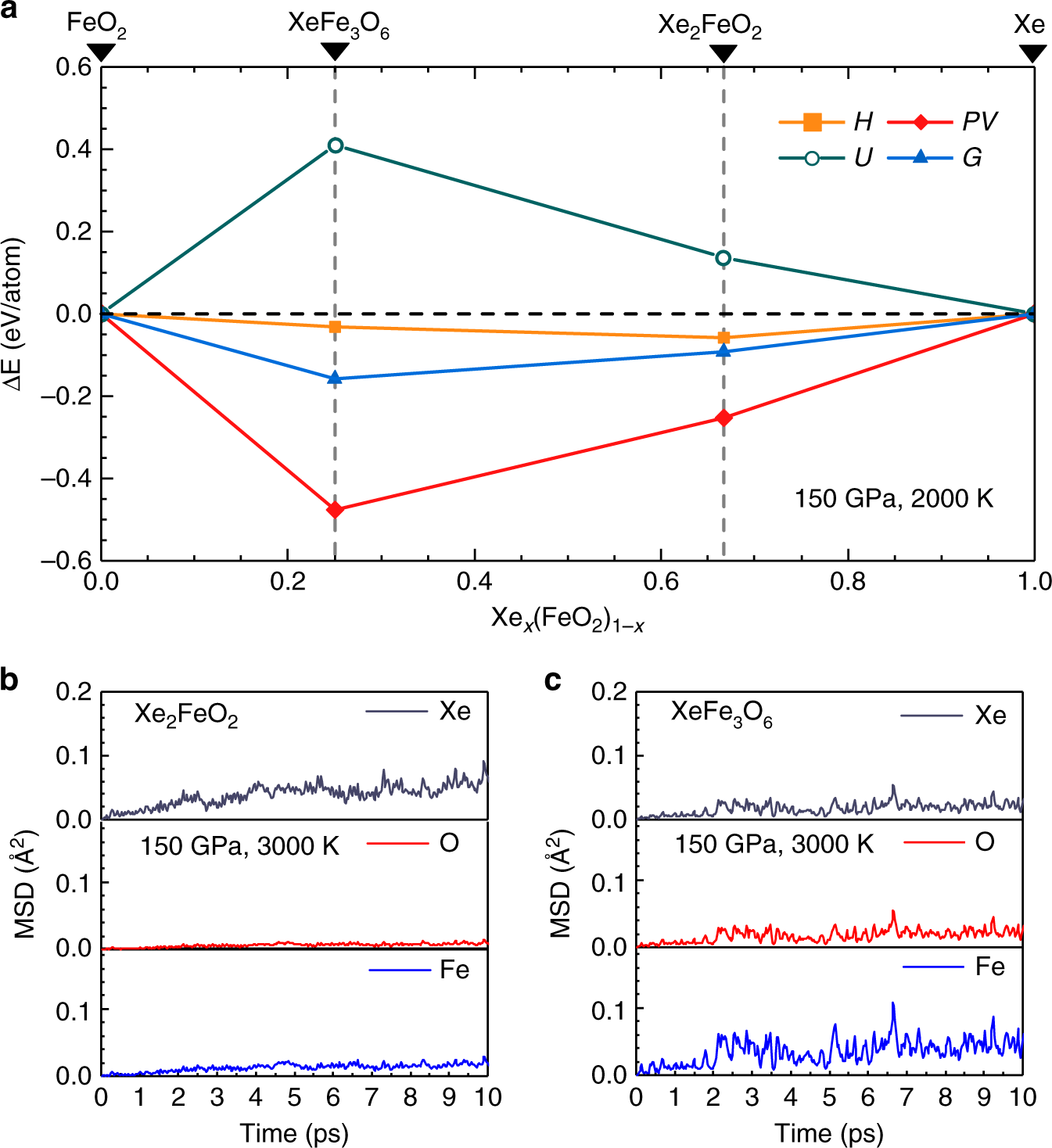

a Various energetic term (ΔE) for the two Xe-Fe oxides, enthalpy (H), pressure–volume (PV) terms, internal energy (U), and Gibbs free energy (G) at 150 GPa, 2000 K. b Mean square deviations (MSD) of Xe, O, and Fe atomic positions in Xe2FeO2 at 150 GPa, 3000 K. c MSD of Xe, O, and Fe atomic positions in XeFe3O6 at 150 GPa, 3000 K.
