Fig. 2: Population structure of RplD binding site mutations in a global gonococcal meta-analysis dataset.

From: Increased power from conditional bacterial genome-wide association identifies macrolide resistance mutations in Neisseria gonorrhoeae

Fig. 2: Population structure of RplD binding site mutations in a global gonococcal meta-analysis dataset.The alternative text for this image may have been generated using AI.

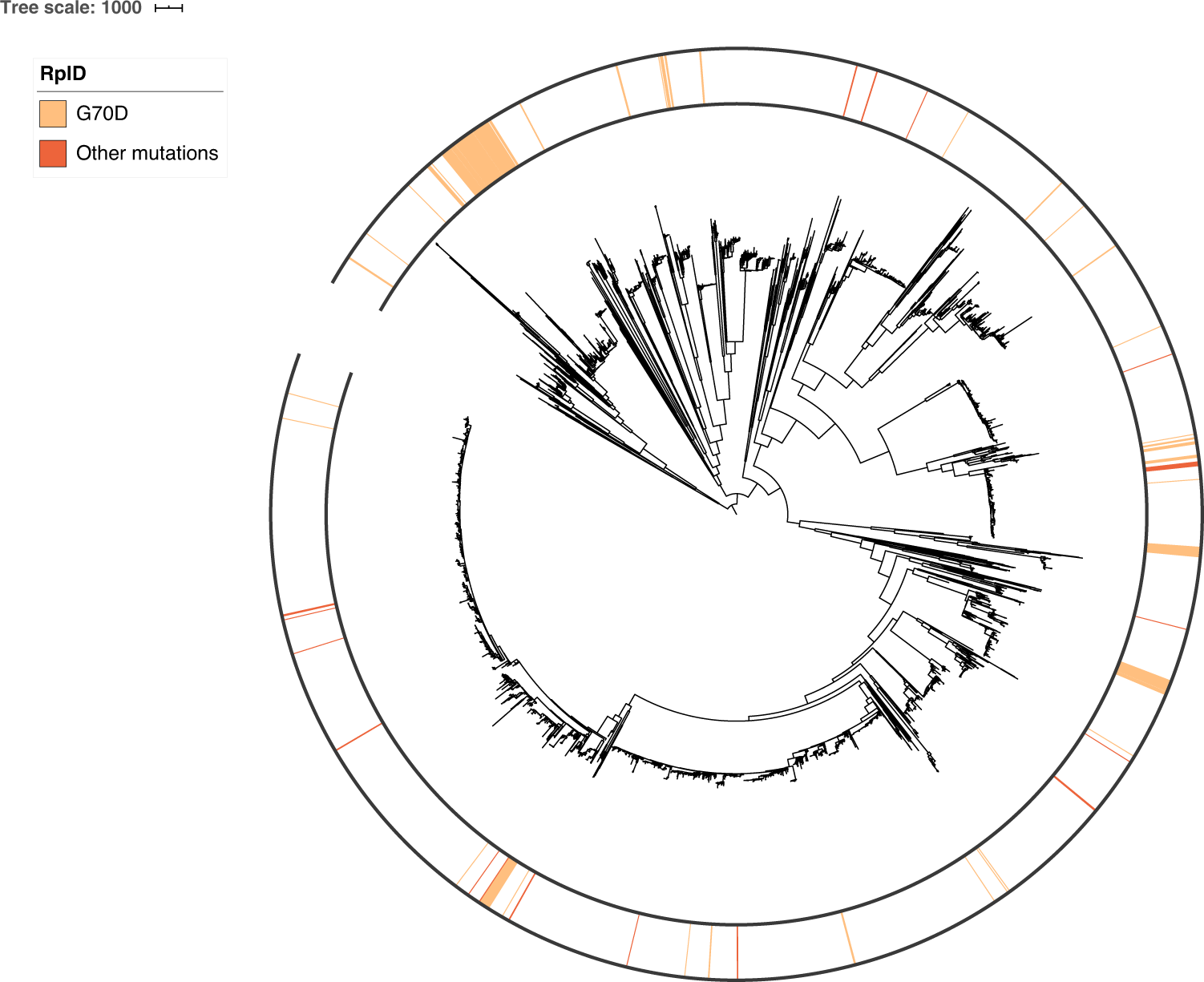

A midpoint rooted recombination-corrected maximum likelihood phylogeny of 4852 genomes based on 68697 SNPs non-recombinant from Ma and Mortimer et al.7 was annotated with the presence of RplD macrolide binding site mutations (orange for G70D and dark orange for other binding site mutations). Branch length represents total number of substitutions after removal of predicted recombination.
