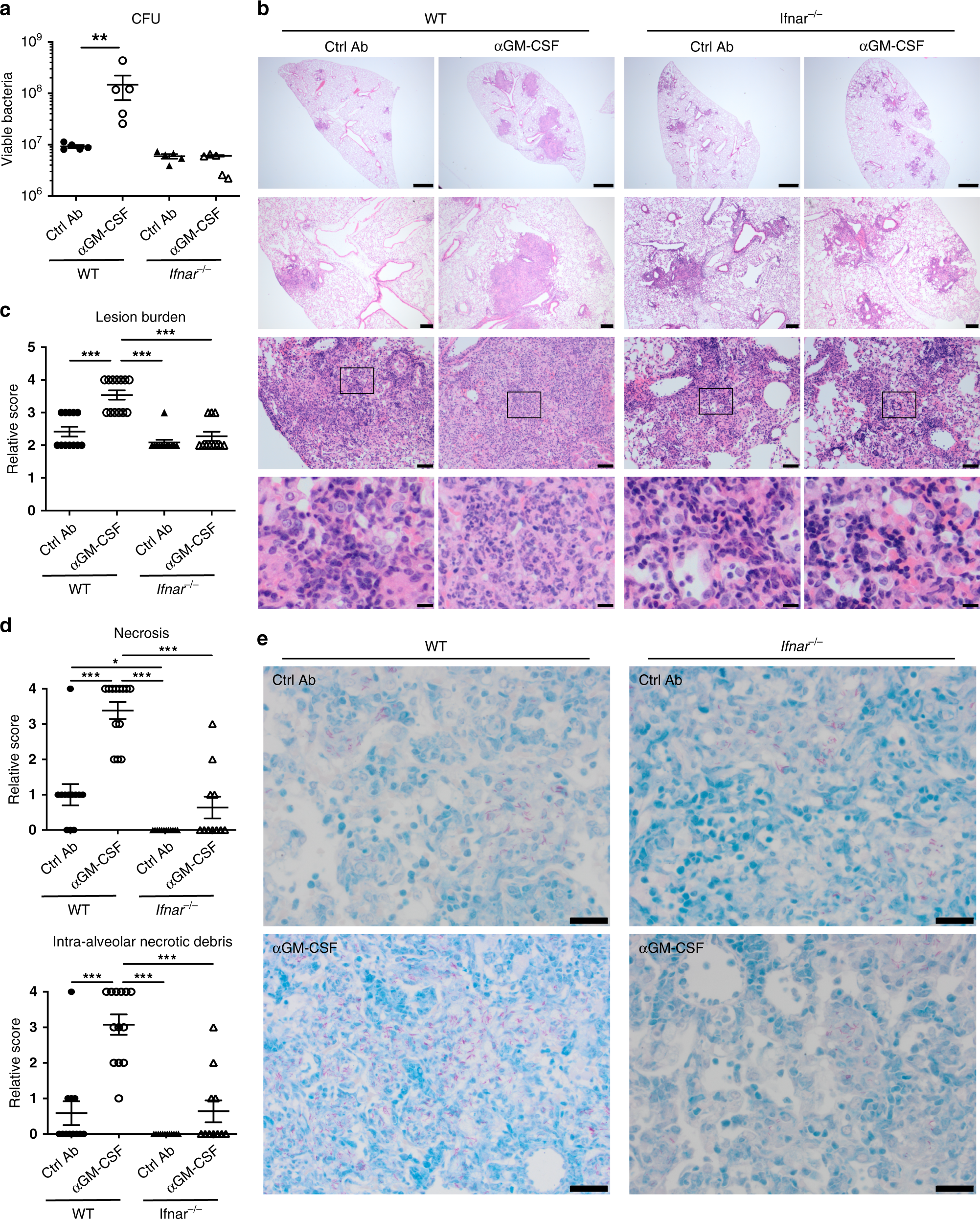

Fig. 6: IFNAR deletion abrogates disease exacerbation prompted by GM-CSF blockade during infection.

WT (circles) and Ifnar^-/- (triangles) mice were infected and treated with Ctrl Ab (closed symbols) or αGM-CSF (open symbols) as in Fig. 1a. a Viable bacterial loads determined in the lungs at day 21 post-infection. **P < 0.0079. Represented is the mean ± SEM; each dot represents an individual mouse: n = 5 mice/group. Source data are provided as a Source Data file. Data representative of two biological experiments. Statistical analysis was performed using the two-tailed Mann–Whitney test. b Representative H&E staining of infected lung sections (n = 2–4 mice/group). Scale bars from top to bottom: 1 mm; 200 µm; 50 µm; 10 µm. c Relative lung lesion burden from H&E stained sections (Supplementary Data 1). 0 = no lesions, 1 = focal lesion, 2 = multiple focal lesions, 3 = one or more focal severe lesions, 4 = multiple focal lesions that are extensive and coalesce, 5 = extensive lesions that occupy the majority of the lung lobe. ***P < 0.0001. d Relative necrosis and intra-alveolar necrotic debris scores from H&E stained lung sections (Supplementary Data 1). 0 = not present, 1 = minimal, 2 = mild, 3 = moderate, 4 = marked. ***P < 0.0001; *P = 0.0294. c, d Data pooled from four biological experiments. Represented is the mean ± SD; each dot represents an individual mouse: n = 11–13 mice/group. Source data are provided as a Source Data file. Statistical analysis was performed using one-way ANOVA Tukey’s multiple comparisons test. e Representative Ziehl–Neelsen staining of infected lung sections (n = 2–4 mice/group). Scale bars, 20 µm. Data representative of four biological experiments (b, e).
