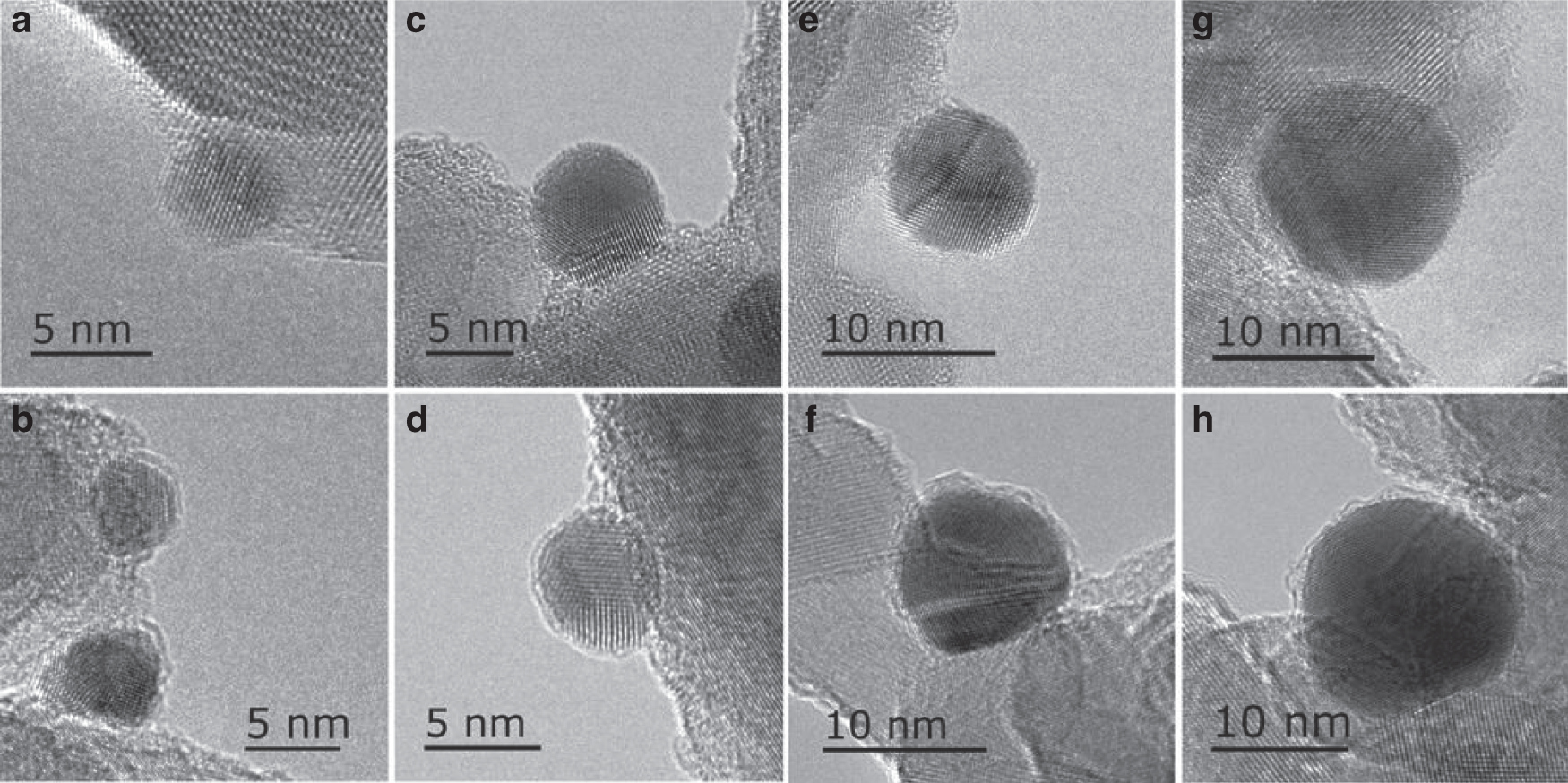

Fig. 2: Representative HRTEM images of different samples.
From: Size-dependent strong metal-support interaction in TiO2 supported Au nanocatalysts
a Au-3 nm, b Au-3 nm-H600, c Au-7 nm, d Au-7 nm-H500, e Au-9 nm, f Au-9 nm-H400, g Au-13 nm, and h Au-13 nm-H400.
