Fig. 6: AFM-IR measurements of EC-deposited NO2-NHCs on Au film following exposure to one LSV cycle.

From: Electrochemical deposition of N-heterocyclic carbene monolayers on metal surfaces

Fig. 6

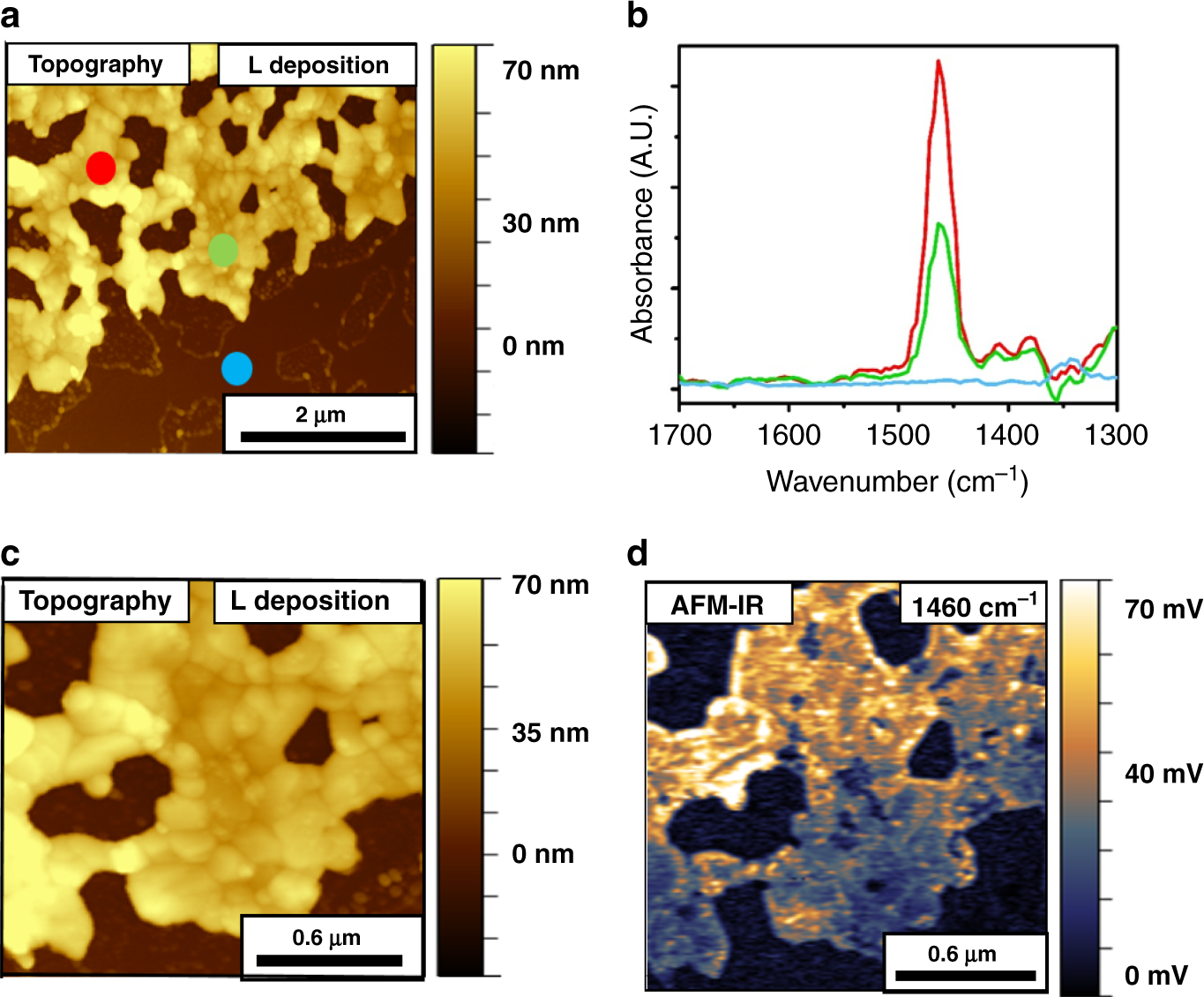

AFM topography (a) and AFM-IR point spectra (b) of EC-deposited NO2-NHCs after one LSV cycle. The vibrational signals were acquired at different locations as indicated by dots with corresponding colors in the AFM topography image. Higher magnification AFM topography image and the corresponding AFM-IR image at 1460 cm−1 are shown in c and d, respectively.
