Fig. 3: Molecular packing of PTEG-2 films.
From: N-type organic thermoelectrics: demonstration of ZT > 0.3

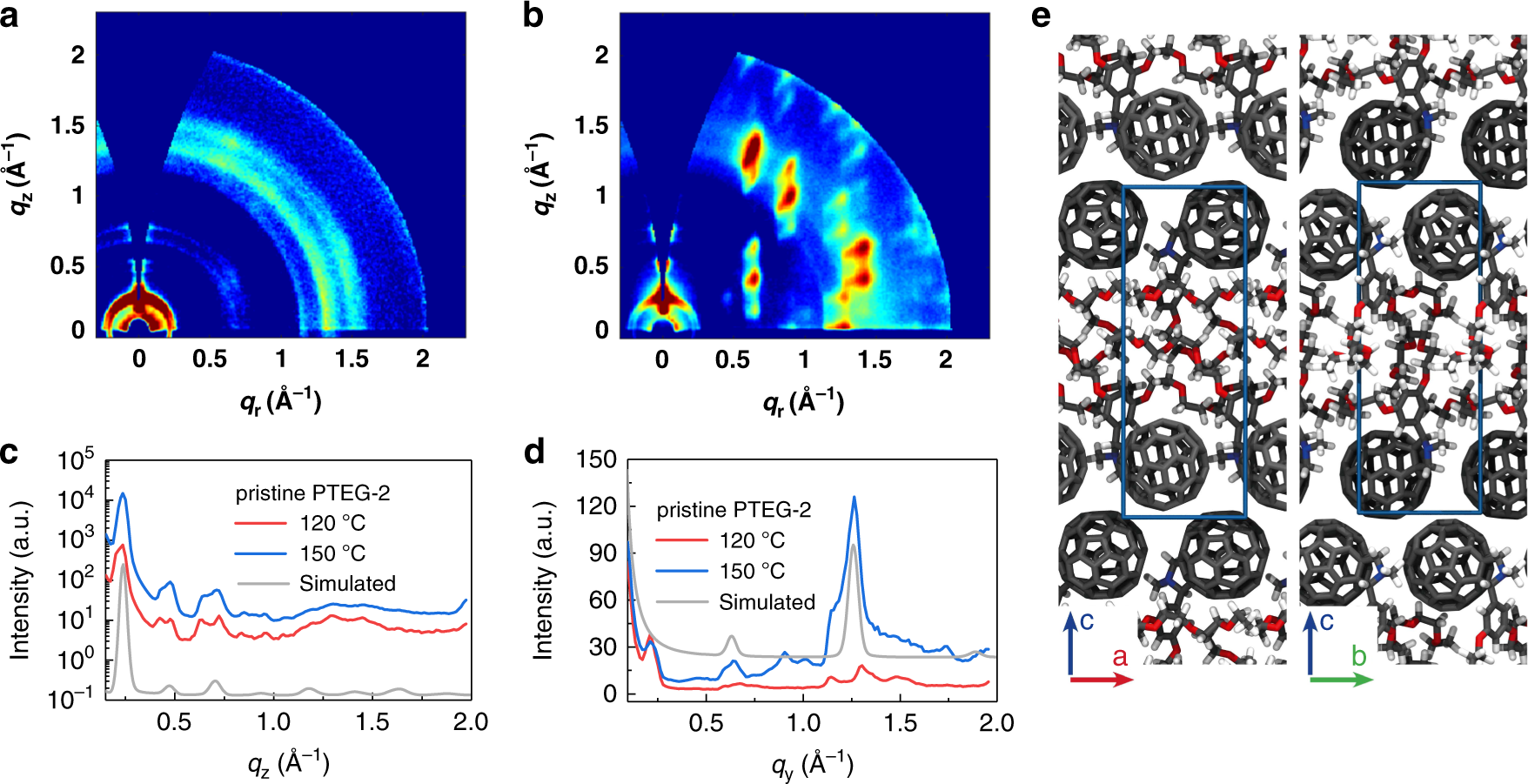

a, b 2D-GIWAXS patterns of pristine PTEG-2 films annealed at (a) 120 °C and (b) 150 °C and (c, d) the corresponding linecuts together with the simulated scattering linecuts (the simulated linecuts are plotted on a linear scale in both cases); e representative snapshot of PTEG-2 molecular packing, as atomistically resolved by molecular dynamics simulations; the unit cell is highlighted in blue.
