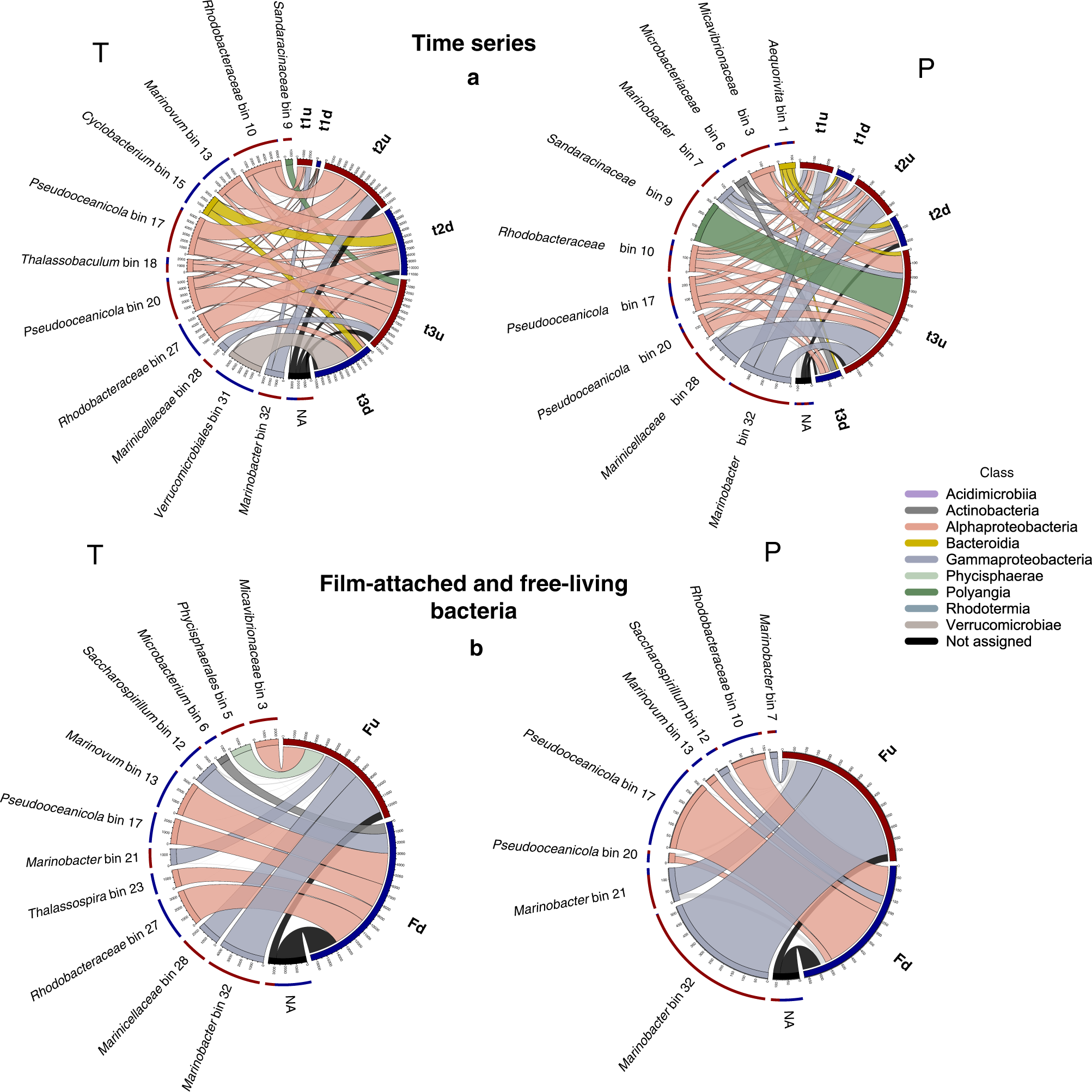

Fig. 4: Bin contribution to gene expression and protein biosynthesis.

a The amount of significantly upregulated (“-u”, red segment) and downregulated (“-d”, blue segment) transcripts (T) and proteins (P) are shown for sampling time points (t1, t2, t3). b The amount of transcripts (T) and proteins (P) significantly upregulated in the film-attached community/downregulated in the free-living community (“Fu”, red segment) or downregulated in the film-attached community/upregulated in the free-living community (“Fd”, blue segment) are also shown. The average of at least two biological replicates were used to calculate transcript and protein fold changes. The amount of genes and proteins detected are represented by the size of each ribbon. Each color represents transcripts and proteins that belong to a certain bacterial class. The outer arc shows the amount of transcripts and proteins up/downregulated per bin (left side of each circle). Tick marks indicate numbers of transcripts and proteins up/downregulated per bin. NA represents genes that could not be allocated to any bin. Only bins that contributed with ≥1000 transcripts and ≥25 proteins are shown. Source data are provided as a Source Data file.
