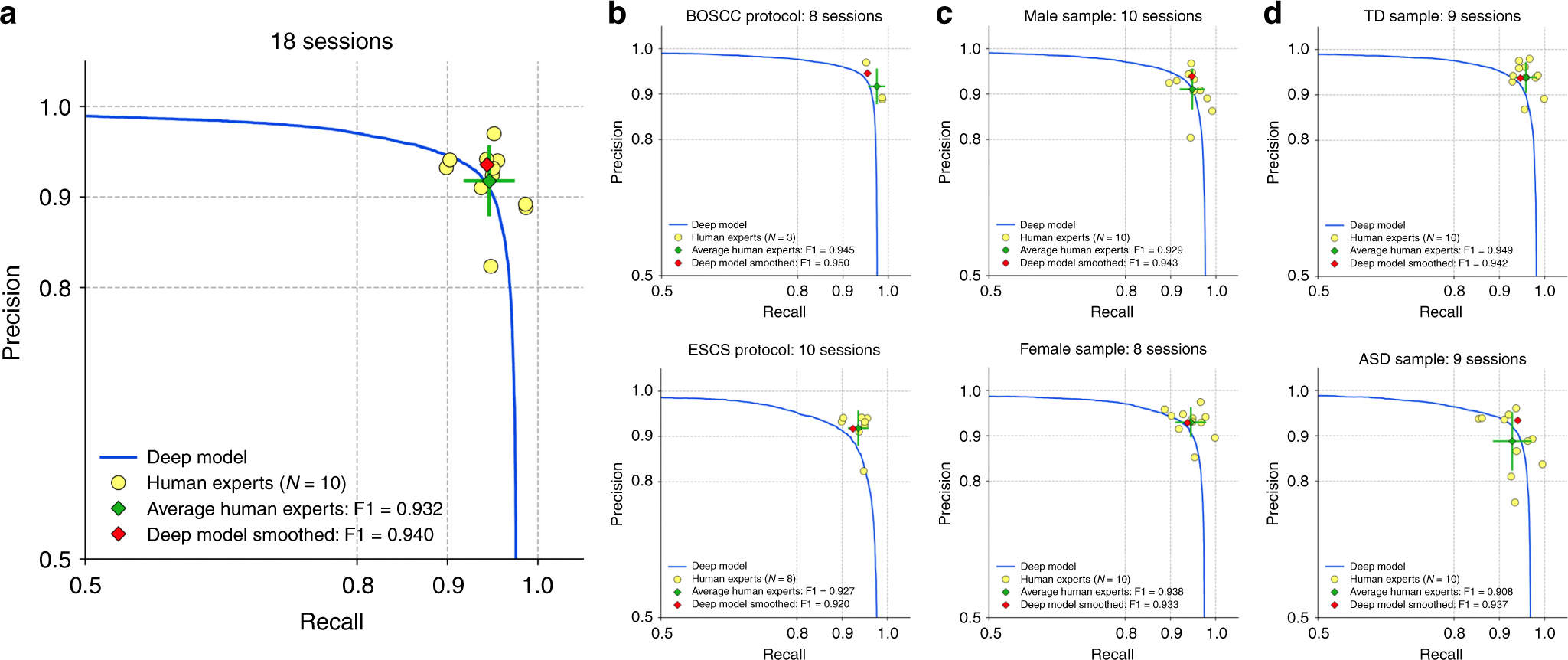

Fig. 2
From: Detection of eye contact with deep neural networks is as accurate as human experts
Precision and recall (PR) of deep learning model and human raters. The blue line is the PR curve for the model, zoomed into the range 0.5–1.0. Human rater data are presented as mean values ± SD. Improved model PR (red diamond) is obtained by temporally smoothing the model output. The PR for each of the ten expert raters (yellow dots) is obtained by comparing an expert's ratings to the consensus ratings of the other nine experts. a PR curve on all 18 validation sessions. The model (red diamond) achieves higher precision than the average of the expert raters (green diamond) for the same recall. The model PR (red diamond) lies within one standard deviation (green error bars) of the mean rater, and both the model and the mean rater have similar F1 scores. Therefore, we conclude that the deep learning model exhibits comparable performance to expert human raters. b PR curves computed separately for the BOSCC (top) and the ESCS protocol (bottom). c PR curves computed separately for male (top) and female (bottom) samples. d PR curves computed separately for TD (top) and ASD (bottom) samples. In all cases, model PR lies within one SD of the mean rater.
