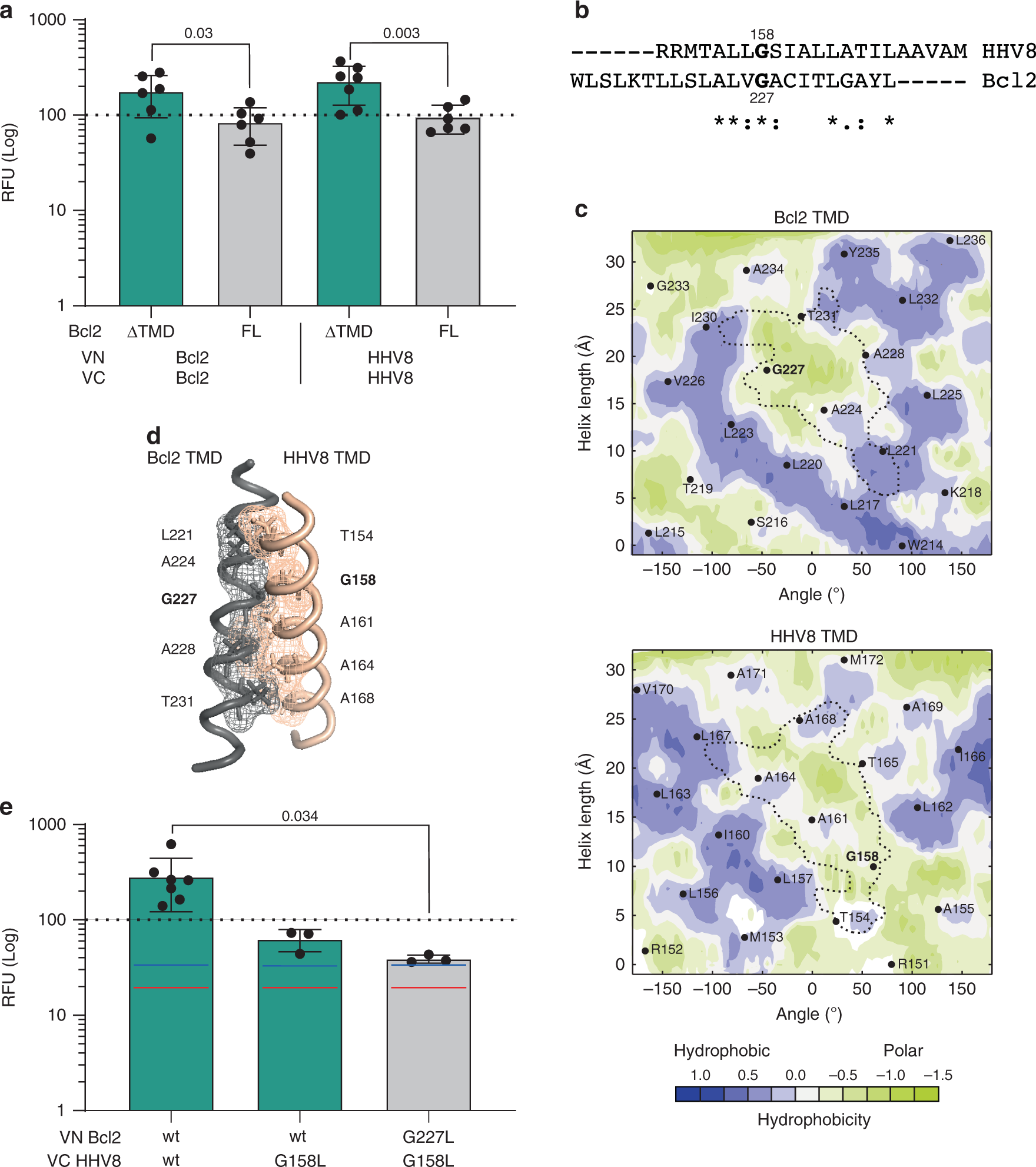

Fig. 4: Interaction between HHV8 and Bcl2 TMDs.

a The BiFC-derived fluorescence (RFU) for the homo-oligomerization of Bcl2 (left) or HHV8 (right) TMDs was measured in the presence of Bcl2 (FL) or Bcl2 ΔTMD (ΔTMD) in HEK 293T cells. The mean and standard deviation of at least six independent experiments are shown (n ≥ 6). Solid dots represent the results of individual experiments. The GpA TMD homodimer was used as a positive control and as the normalization value (dotted line). A significant (two-tailed homoscedastic t-test) decrease in the fluorescence is highlighted in gray, p-values are indicated. b Sequence alignment of Bcl2 and HHV8 TMDs. The alignment was done with Clustal Omega (EMBL-EBI). c Predicted (PredDIMER) contact area between Bcl2 and HHV8 TMDs. The position (length and angle) of each residue in a putative α-helix are indicated. A dotted line encircles the contact area in each TMD. The hydrophobicity of the residues is shown with a color scale. As expected, there are many hydrophobic residues in both TMDs. However, the contact area between both α-helices is mostly hydrophilic. d Model of a putative dimer between Bcl2 TMD and HHV8 TMD, obtained with PredDIMER. The residues involved in the interaction are indicated, conserved glycine residues in Bcl2 and HHV8 are highlighted in bold. e Bcl2 and HHV8 TMD hetero-oligomerization measured by BiFC in HEK 293T cells. Fluorescence from the VN GpA/VC-GpA homodimer was used to normalize the signal (dotted line). The mean and standard deviation of at least three independent experiments are shown (n ≥ 3). Solid dots represent the results of individual experiments. The blue (VN T20 TMD) and red (VC T20 TMD) lines indicate the fluorescence of the controls used for the statistical analysis (two-tailed homoscedastic t-test), green bars denote RFU values above the controls, p-values are indicated.
