Fig. 4: Magnon dispersion curves of the two magnon modes of an easy-plane antiferromagnet. | Nature Communications

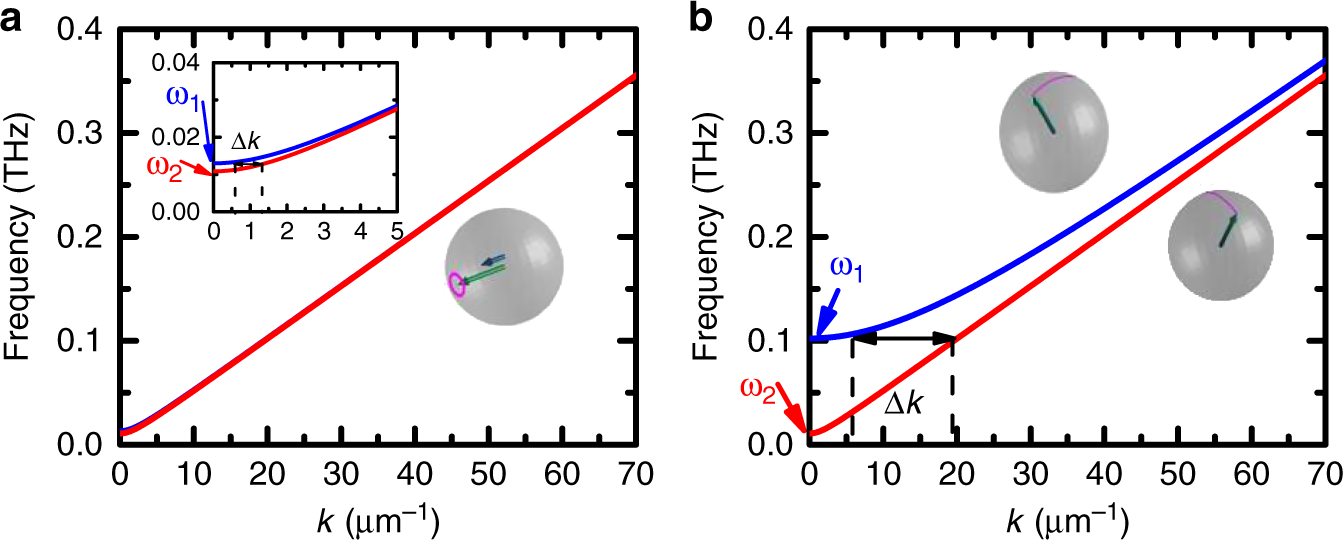

Fig. 4: Magnon dispersion curves of the two magnon modes of an easy-plane antiferromagnet.

From: Long-distance spin-transport across the Morin phase transition up to room temperature in ultra-low damping single crystals of the antiferromagnet α-Fe2O3

Fig. 4

a Low (close to the Morin transition) and b high anisotropy (far from the Morin transition, here +30 K29). The pairs of magnons which satisfy energy conservation have small (large) Δk for low (high) anisotropy. For the calculations, we use a limiting magnon velocity c = 5.104 m/s as estimated from the magnon dispersion of Martin et al.40.
