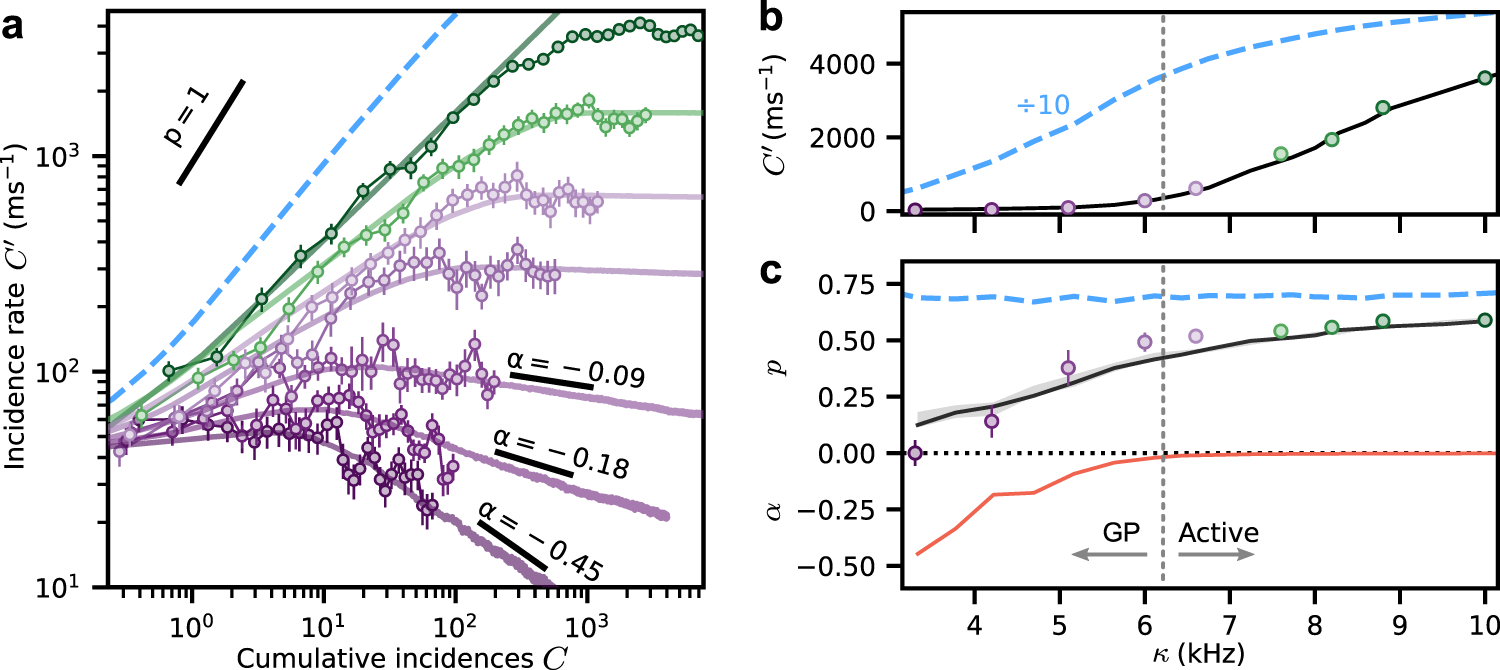

Fig. 2: Rydberg excitation incidence curves for different facilitation rates showing power-law growth and Griffiths effects.
