Fig. 3: Proton radiographs from probing at 45° to the target normal.
From: Observations of pressure anisotropy effects within semi-collisional magnetized plasma bubbles

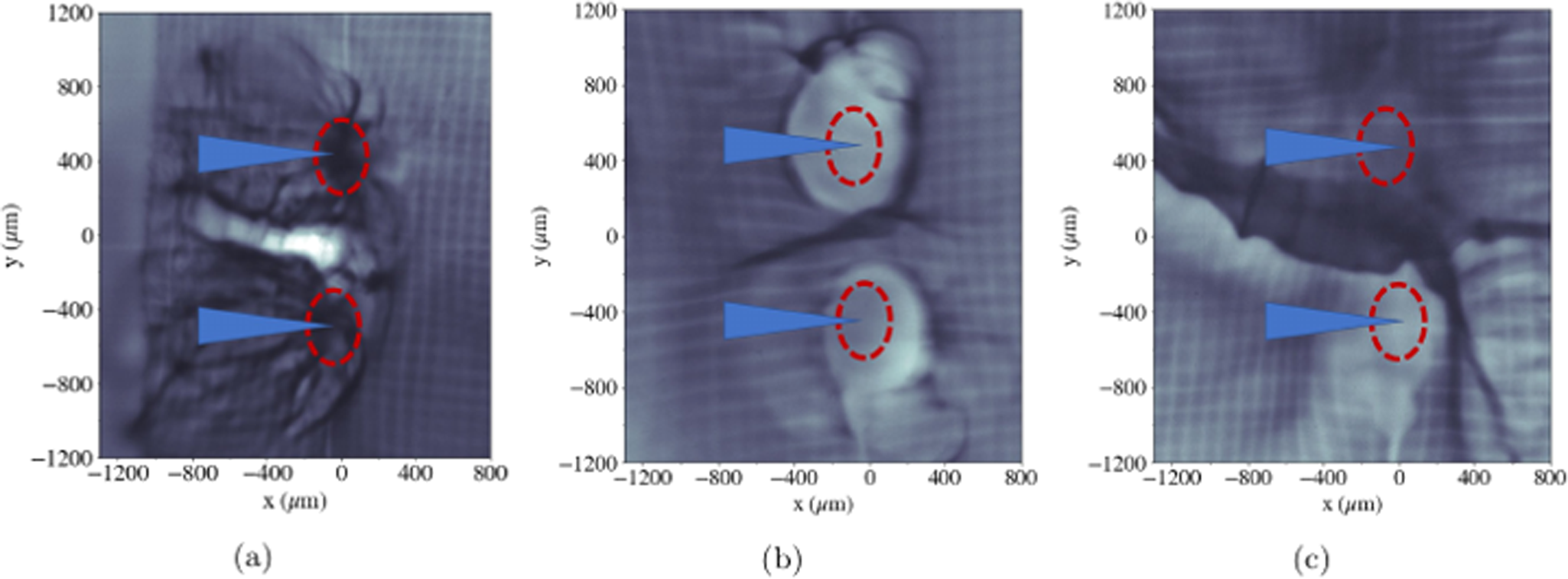

Radiographs of the interaction using 17.4 MeV protons probing at 1 ns for (a) and (b) and at 2.5 ns for (c). The protons probe the interaction at 45° to the target normal with the protons probing through from the same side as the main laser (a) and from the opposite side (b) and (c). In these images (blue) lasers are incident from the left onto the targets, noted by red ovals.
