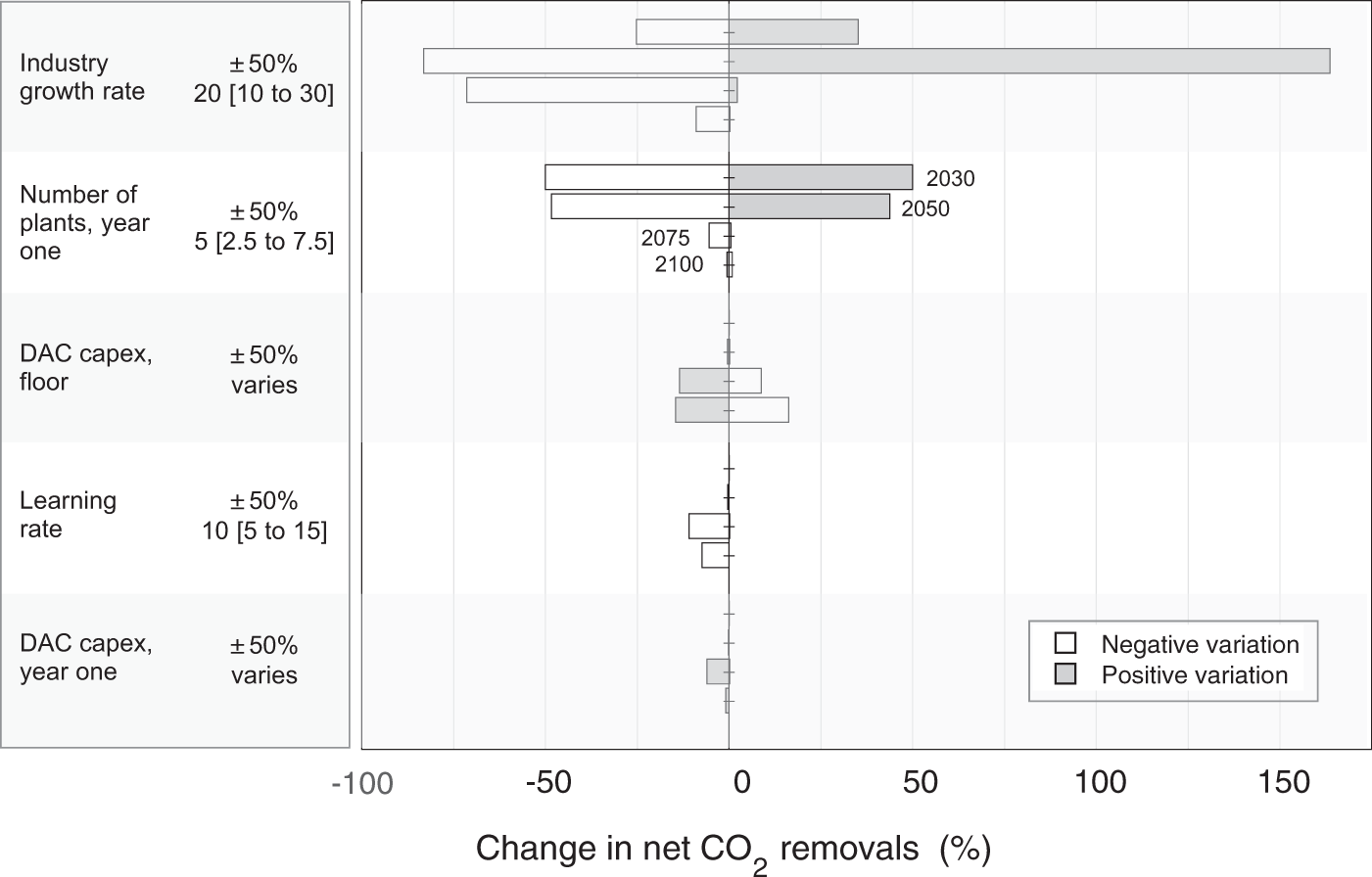

Fig. 7: Net CO2 removal sensitivity to upscaling parameters, DAC costs, and learning rate.
From: Emergency deployment of direct air capture as a response to the climate crisis
Bars show the mean change across scenarios in net CO2 removal in 2030, 2050, 2075, and 2100 due to variation in the single parameter. Parameters (nominal value and plus/minus variation) are listed at left. White bars show the effect of negative variation (e.g., decreasing growth rate or cost) and gray bars show positive variation. Funding is from the club of democracies. (For results on all key parameters see Supplementary Figs. 16 and 17.).
