Fig. 4: Model improvement compared to observations with different biomass burning microphysical and radiative properties.

From: Biomass burning aerosols in most climate models are too absorbing

Fig. 4: Model improvement compared to observations with different biomass burning microphysical and radiative properties.

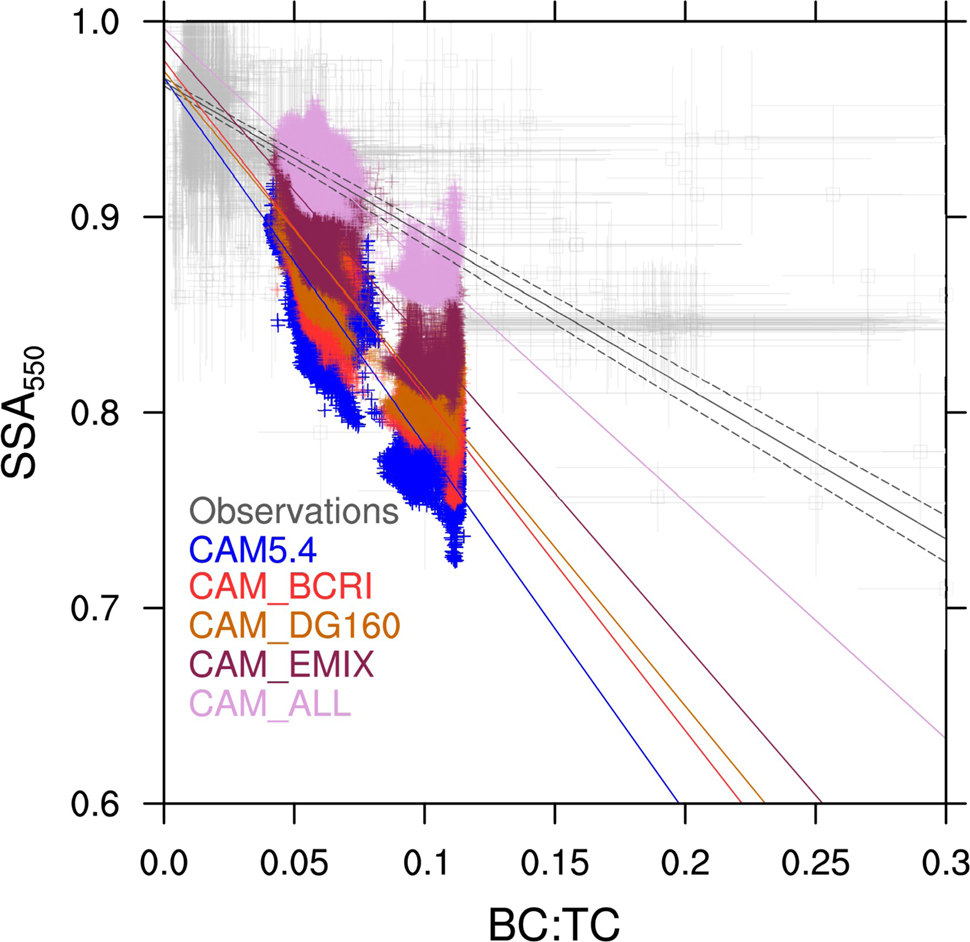

Comparison of observed biomass burning (BB) single scattering albedo (SSA) at 550 nm wavelength versus black carbon to total carbon ratio (BC:TC) to CAM5.4 sensitivity tests. Observations are in gray. The CAM5.4 sensitivity tests are for different BB aerosol treatments: default CAM5.4 (CAM5.4; blue), CAM5.4 with decreased BB black carbon refractive index (CAM_BCRI; red), CAM5.4 with increased BB aerosol size (CAM_Dg160; gold), CAM5.4 with externally mixed, fresh BB aerosol (CAM_EMIX; maroon), and CAM5.4 with all of the previous changes (CAM_ALL; pink).
