Fig. 5: Pipeline and data throughput of on-the-fly reduction and compression.
From: A data reduction and compression description for high throughput time-resolved electron microscopy

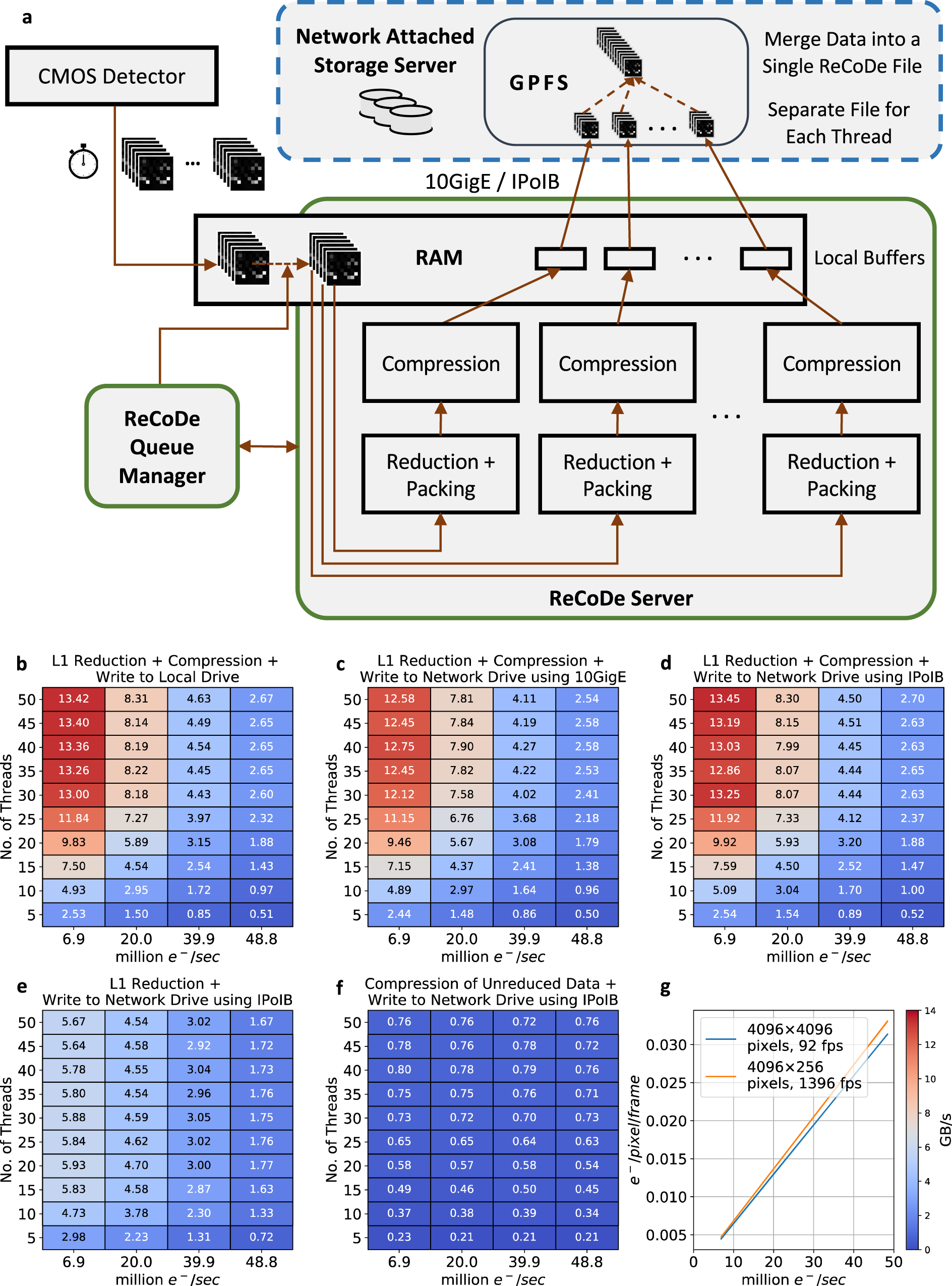

a ReCoDe’s multithreaded reduction compression pipeline used for live data acquisition. The CMOS detector writes data into the RAM-disk in timed chunks, which the ReCoDe server processes onto local buffers and then moves to NAS servers. The ReCoDe Queue Manager synchronizes interactions between the ReCoDe server and the detector. b L1 reduction and compression throughput (GB/s) of Deflate-1, with multiple cores at four electron fluxes. The throughput of ReCoDe depends only on the number of electron events every second, hence the four dose rates (horizontal axis) are labeled in million electrons/second. The simulations were performed on a 28-core system, as a result, throughput scales non-linearly when using more than 28 cores (Supplementary Fig. 3). c, d Show throughputs when using 10 GbE and IPoIB connections to write directly to NAS, respectively. In e, throughput of L1 reduction without any compression; (f) throughput of Deflate-1 when compressing the unreduced raw data. g Shows the conversion between million e/s and e/pixel/frame for two different frame size-frame rate configurations of the DE-16 detector.
