Fig. 3: rDNA variants are differentially distributed between NOR2 and NOR4.

From: Sequencing of the Arabidopsis NOR2 reveals its distinct organization and tissue-specific rRNA ribosomal variants

Fig. 3: rDNA variants are differentially distributed between NOR2 and NOR4.

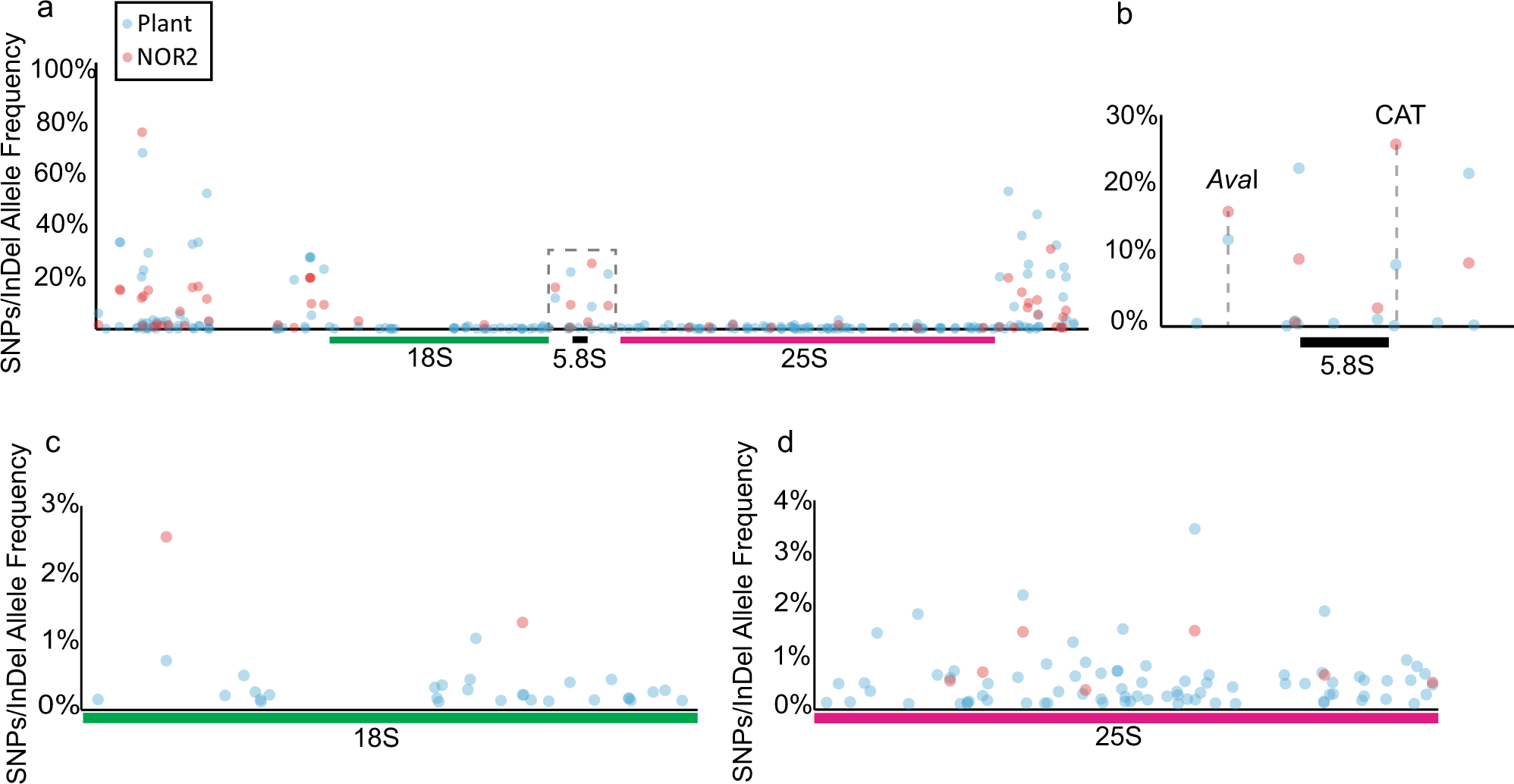

a Plot depicting the SNP/InDel allele frequencies in rDNA units derived from genomic plant DNA sequencing (blue dots; representing allele frequencies in both NOR2 and NOR4) and from BAC sequencing (red dots; representing allele frequencies only in NOR2). Dashed box indicates the enlarged area depicted in b. b 5.8S rDNA region with the AvaI and the CAT alleles highlighted. c Allele frequencies in the 18S rDNA region. d Allele frequencies in the 25 S rDNA region.
