Fig. 2: PDF and XRD patterns.
From: Non-equilibrium metal oxides via reconversion chemistry in lithium-ion batteries

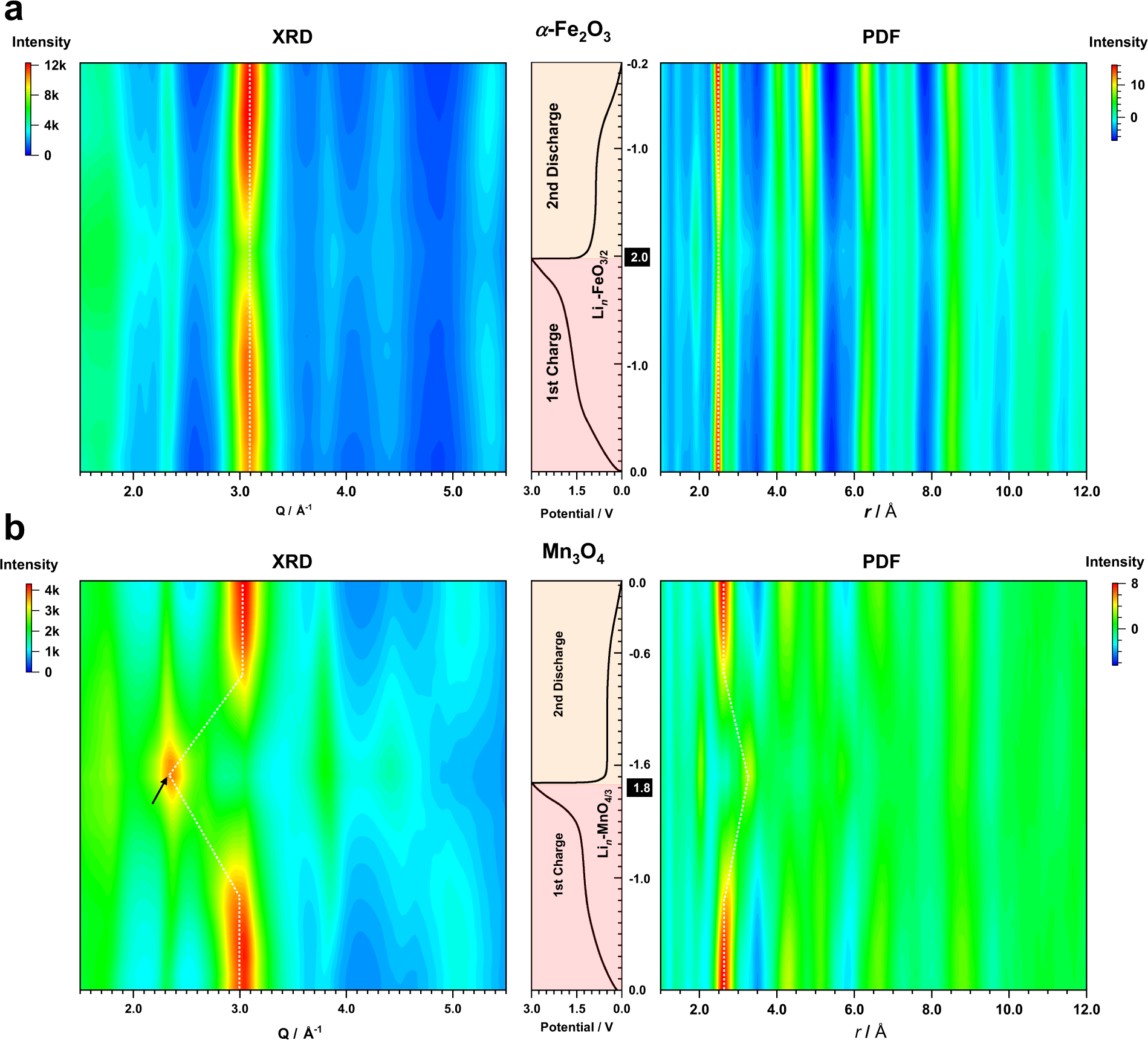

Contour plot of the XRD (left) and PDF (right) patterns extracted from the in situ X-ray total scattering experiments for a α-Fe2O3 and b Mn3O4. Each y-slice of the contour plot is aligned with the corresponding “normalised relative Li content” (Fig. 1) in the first charge and second discharge cycles. The “relative Li content” at the end of the first charge is highlighted. Bragg reflection corresponding to zb-MnO is marked with a black arrow. The position change of the most intense peak in each contour plot is marked using a white dotted line.
