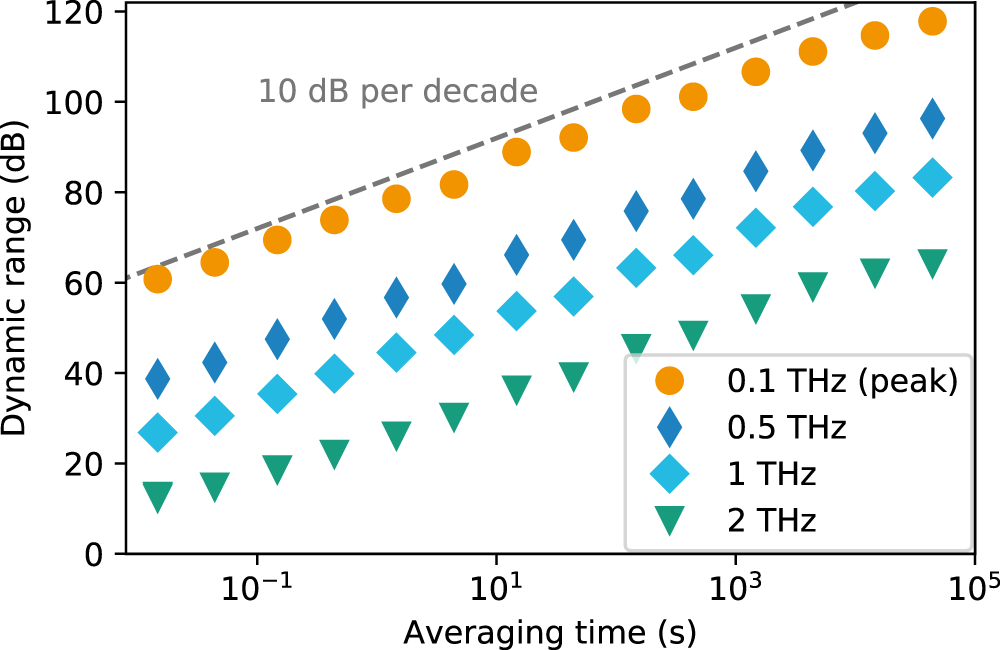

Fig. 5: Dynamic range as a function of averaging time for selected frequencies within the THz spectrum.

From: Optoelectronic frequency-modulated continuous-wave terahertz spectroscopy with 4 THz bandwidth

Fig. 5: Dynamic range as a function of averaging time for selected frequencies within the THz spectrum.The alternative text for this image may have been generated using AI.

Circles, diamonds, squares, and triangles correspond to frequencies of 0.1 (spectral maximum), 0.5, 1, and 2 THz. The dashed gray line indicates an increase of 10 dB per decade, as predicted by Eq. (20).
