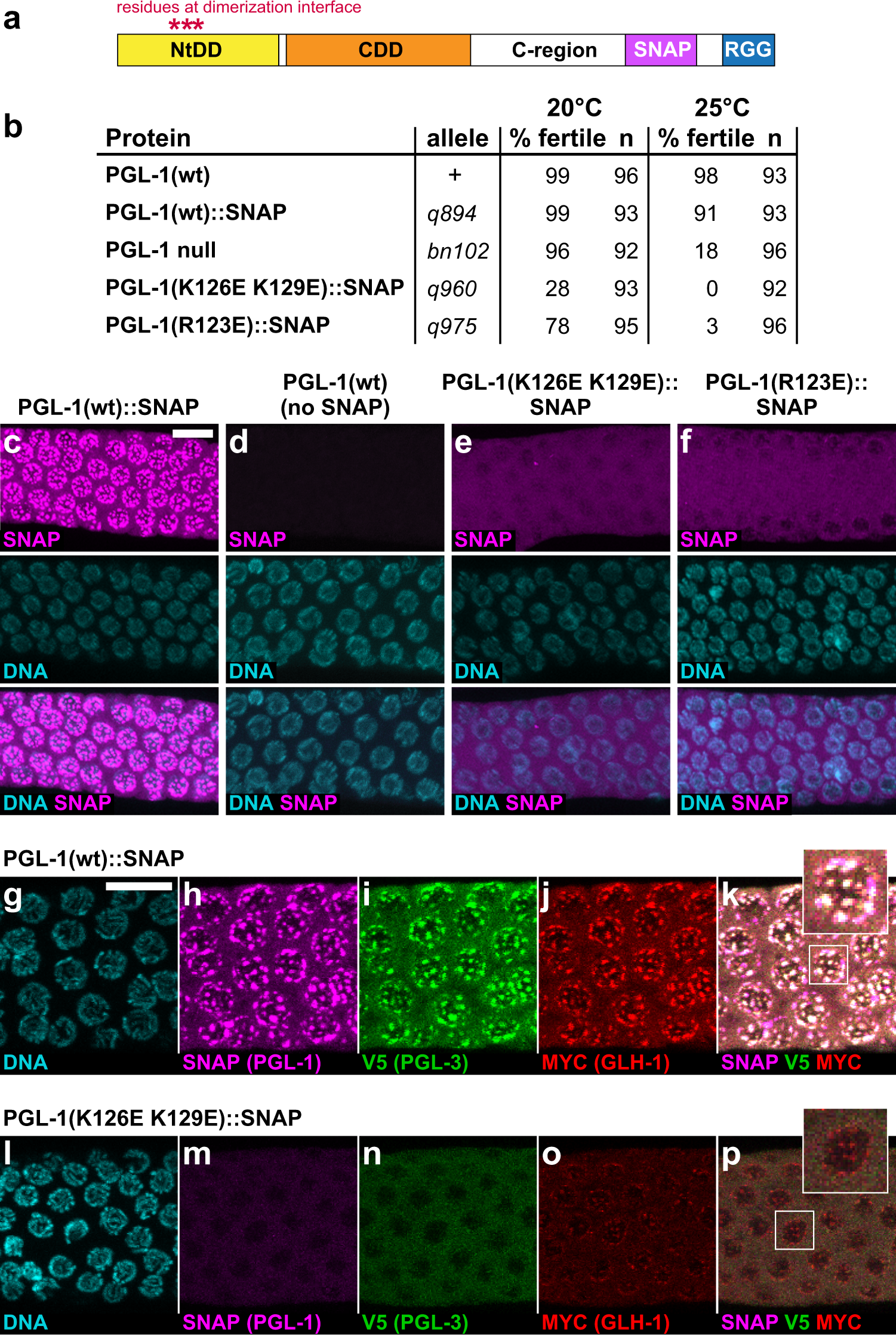

Fig. 4: NtDD dimerization is critical for fertility and P granule formation in nematodes.
From: C. elegans germ granules require both assembly and localized regulators for mRNA repression
