Fig. 2: Ice speed profiles.
From: Widespread increase in dynamic imbalance in the Getz region of Antarctica from 1994 to 2018

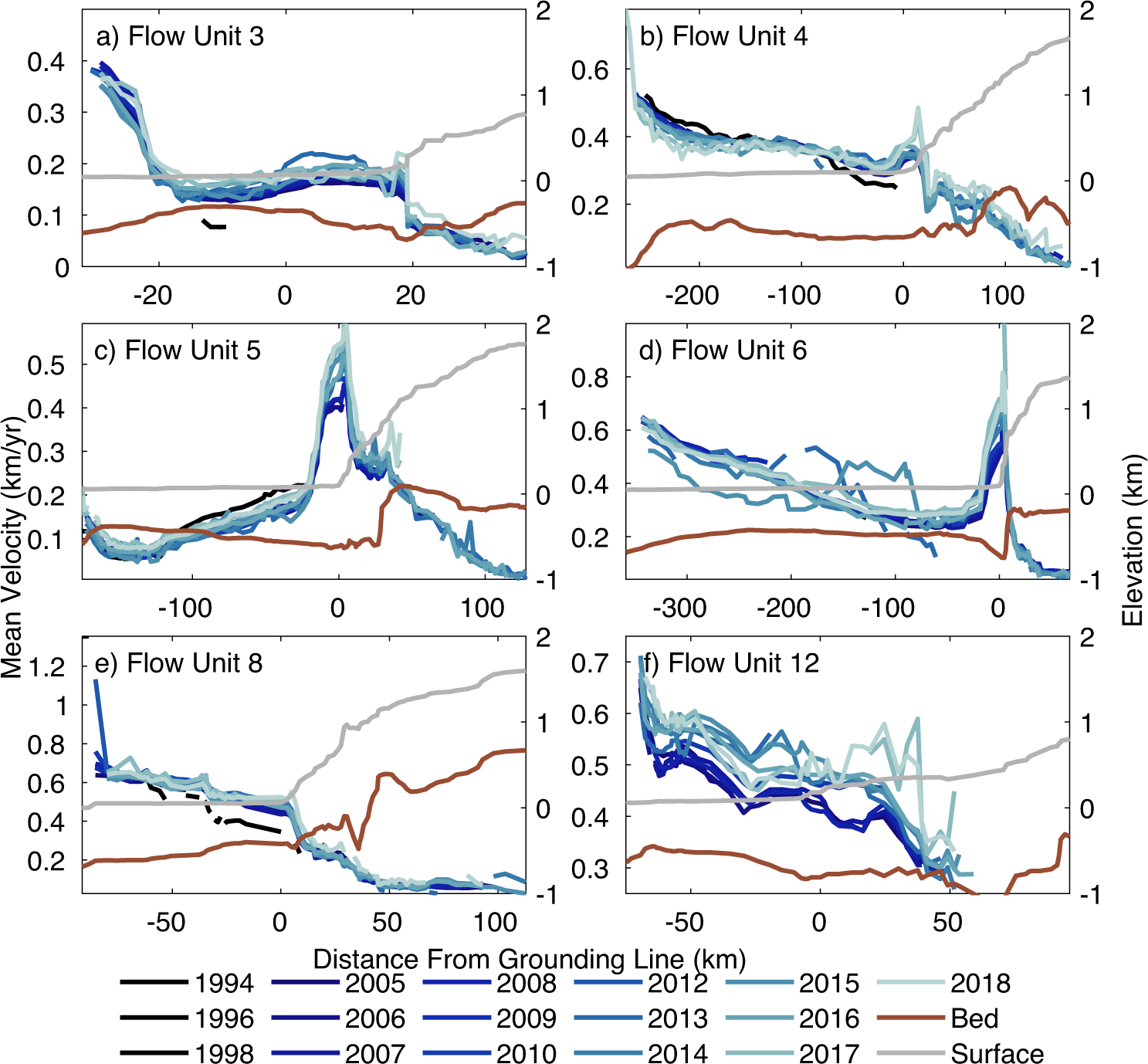

Profiles of ice speed observed between 1994 (dark blue) and 2018 (light blue) extracted along flow-line transects located on the central trunk of outlet glaciers in the Getz study region. The ice surface elevation (grey line) and bed elevation (brown line) from BEDMAP2 (ref. 32) extracted along the same profile is also shown. The x-axis is shown as distance from the grounding line67, with positive values indicating the inland section of the profile on the ice sheet, and negative values indicating seaward locations. Flow units 3 (a), 4 (b), 5 (c), 6 (d), 8 (e) and 12 (f) are presented here, with all 14 flow line profiles shown in Supplementary Fig. 8.
