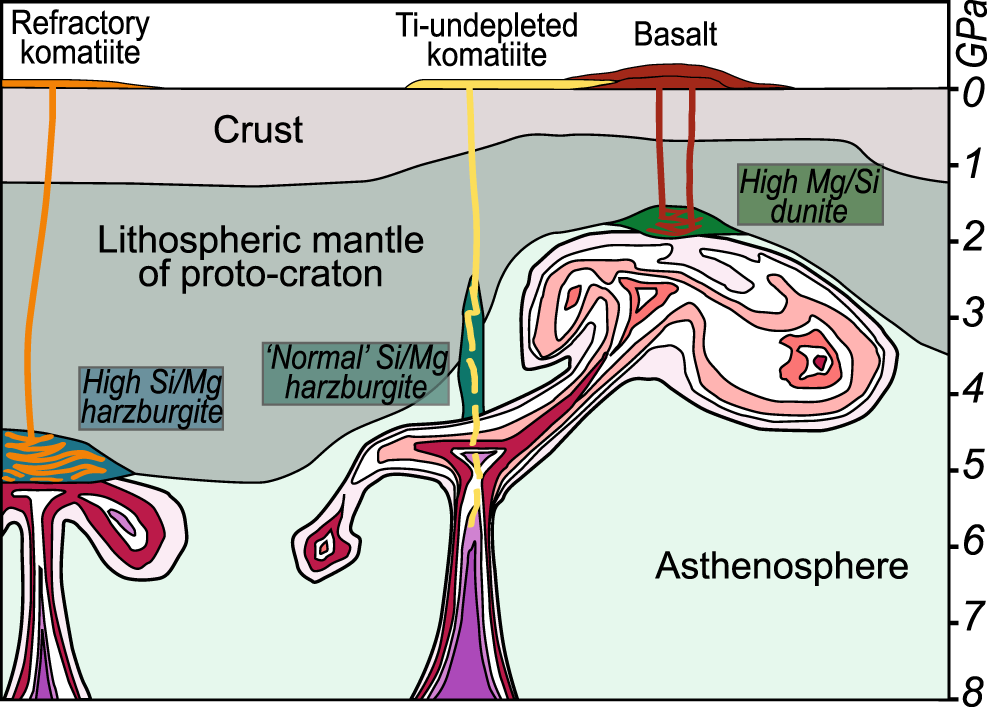

Fig. 7: Schematic diagram showing three main mantle melting zones of a growing craton (vertically exaggerated).
From: Depth-dependent peridotite-melt interaction and the origin of variable silica in the cratonic mantle
The proto-cratonic lithosphere is thick on left-hand side but strongly extended on right-hand side. Two hot mantle upwellings are shown. On the left, the upwelling encounters strong refractory harzburgite and komatiite-harzburgite reaction forms new komatiite and residual orthopyroxene-rich, low MgO/SiO2 harzburgite. In the centre, an upwelling asymmetrically impinges on the extended lithosphere. Within the root of the upwelling, polybaric melting of asthenosphere forms non-depleted komatiite. In the diverted expanding head, basalt is produced, reacting with pre-existing shallow harzburgite to form more basalt and residual high MgO/SiO2 dunite.
