Fig. 4: AP-1, but not AP-4, buds from the TGN.

From: Cargo sorting zones in the trans-Golgi network visualized by super-resolution confocal live imaging microscopy in plants

Fig. 4

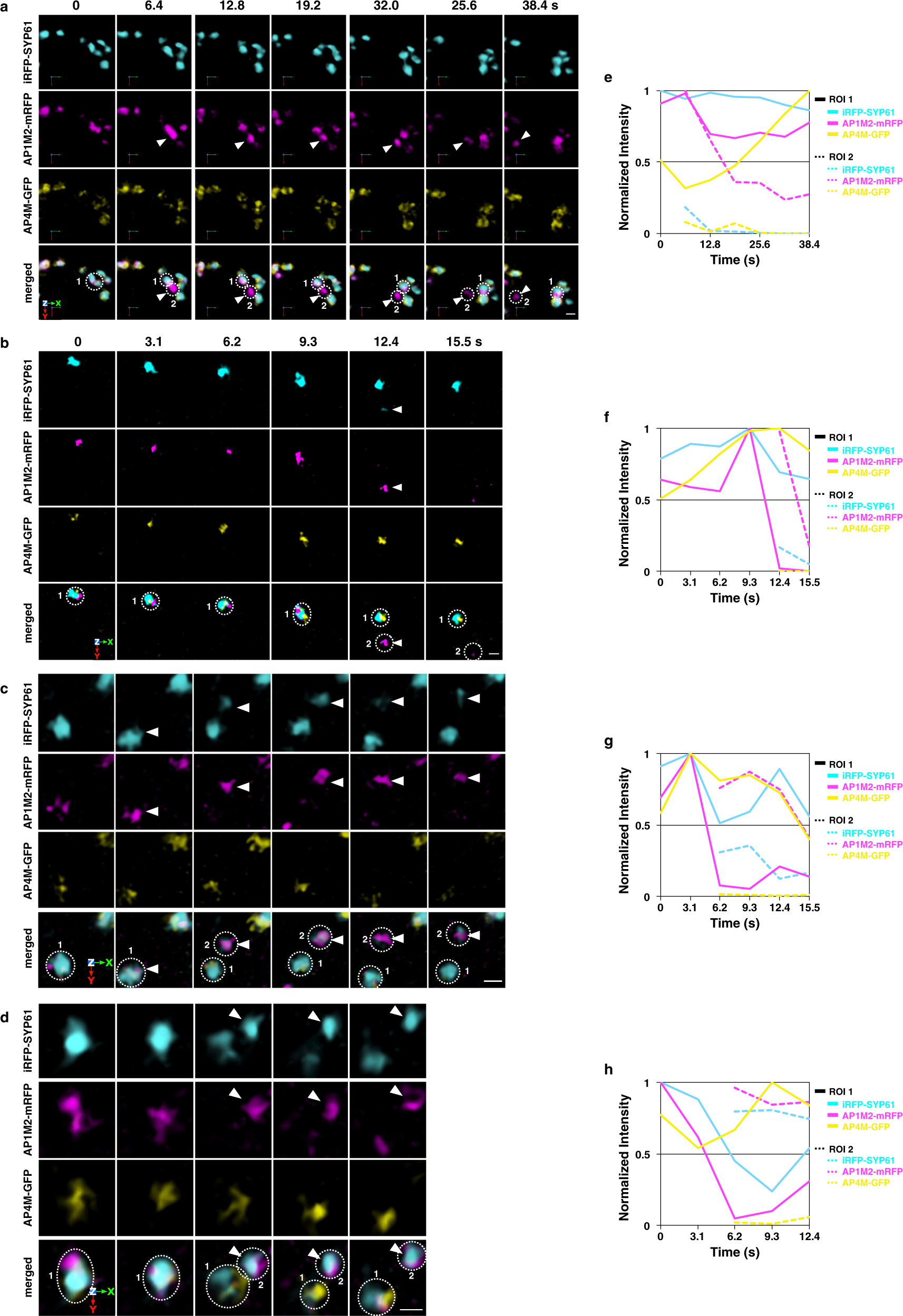

a–d 3D time-lapse (4D) images of iRFP-SYP61, AP1M2-mRFP, and AP4M-GFP in the epidermal cells of the root elongation zone under SCLIM. Arrowheads indicate the dissociation of AP1M2-mRFP and iRFP-SYP61 from a large population of TGN labeled with iRFP-SYP61. Images are lined up every 6.4 s (a) or 3.1 s (b–d) from left to right. Scale bars = 1 μm. e–h Time course changes in relative fluorescence intensities of iRFP-SYP61, AP1M2-mRFP, and AP4M-GFP in ROIs of a–d. The experiments were repeated independently six times with similar results, and micrographs from representative experiments are presented.
