Fig. 2: The CO production on the silver’s TBs.

From: Direct electrosynthesis of 52% concentrated CO on silver’s twin boundary

Fig. 2

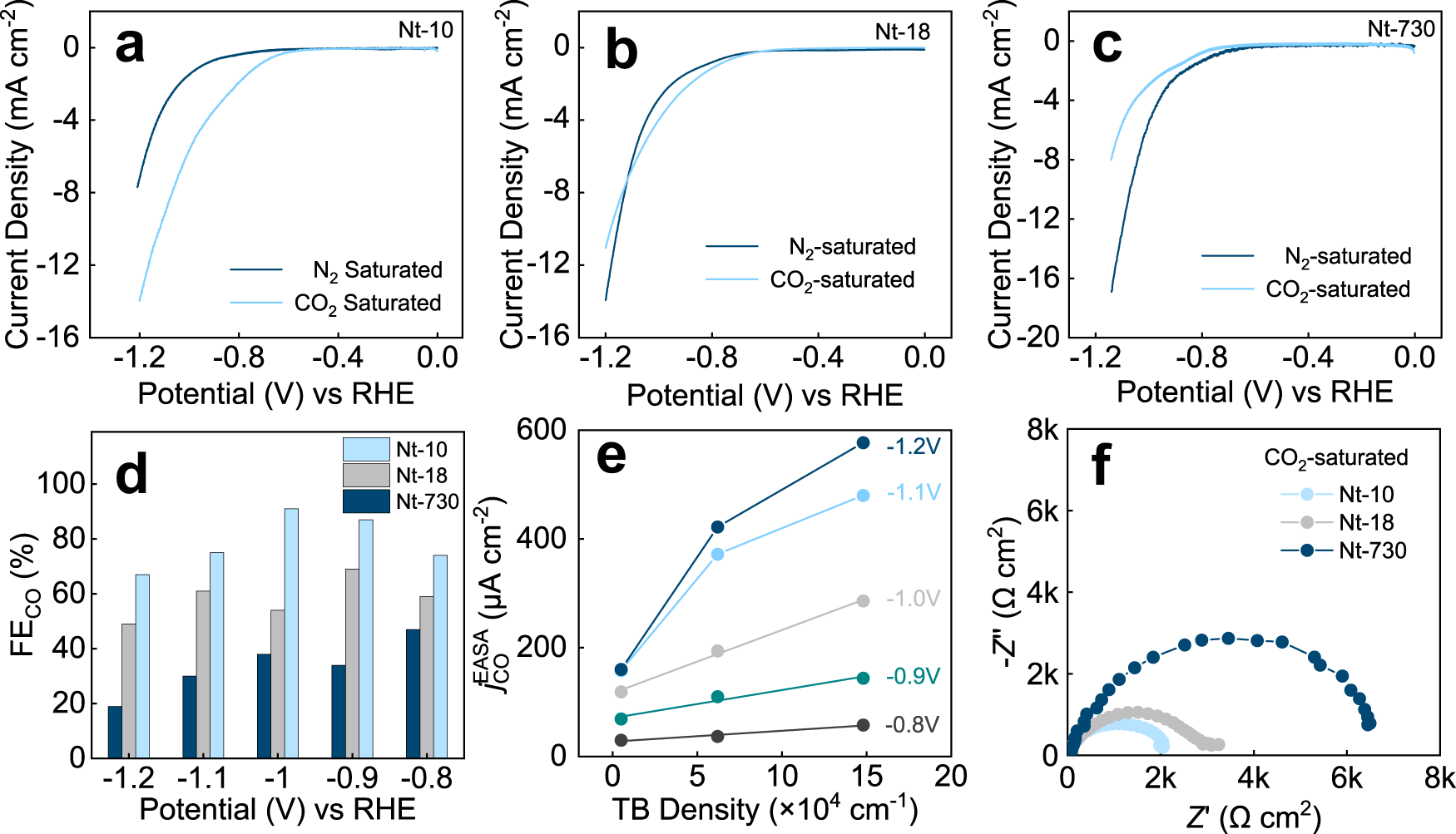

LSV curves obtained on a Nt-10, b Nt-18, and c Nt-730 in N2-saturated and CO2-saturated electrolyte. d The FECO under different applied cathode potentials in CO2-saturated electrolyte. e The correlation between \(j_{{\mathrm{CO}}}^{{\mathrm{EASA}}}\) and TB density at different potentials. f Nyquist plots of Nt-10, Nt-18, and Nt-730 at −0.7 V in CO2-saturated solution. All electrochemical measurements were carried out in a 0.5 M KHCO3 solution.
