Fig. 4: Learning RPs in tasks with multiple cues.
From: Learning with reinforcement prediction errors in a model of the Drosophila mushroom body

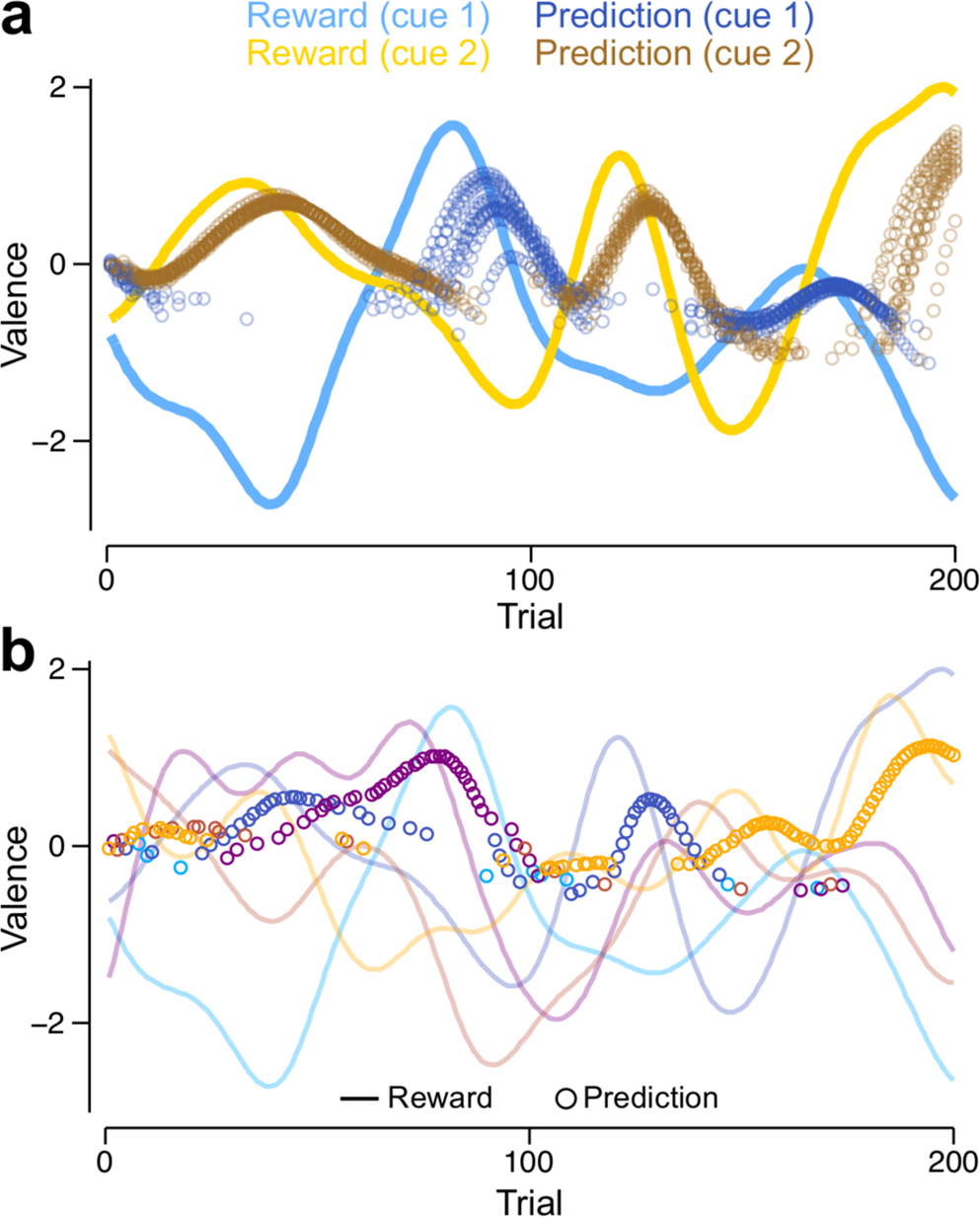

RPs are shown for the MV model, but the VSλ model exhibits almost identical behaviour. a Reinforcement schedules (lines) and RPs (circles, shown only for the cue chosen on each trial) for two cues (blue: cue 1; yellow: cue 2). RPs are shown for ten independent runs of a simulation using the same reinforcement schedule. b Reinforcement schedules (lines) and RPs (circles, shown only for the cue chosen on each trial) for a single run of the model in a task involving 5 cues. Each colour corresponds to reinforcements and predictions for a different cue.
