Fig. 2: Sensitivity of the 14C-10Be chronometer for detecting landscape transience.

From: Cosmogenic in situ 14C-10Be reveals abrupt Late Holocene soil loss in the Andean Altiplano

Fig. 2

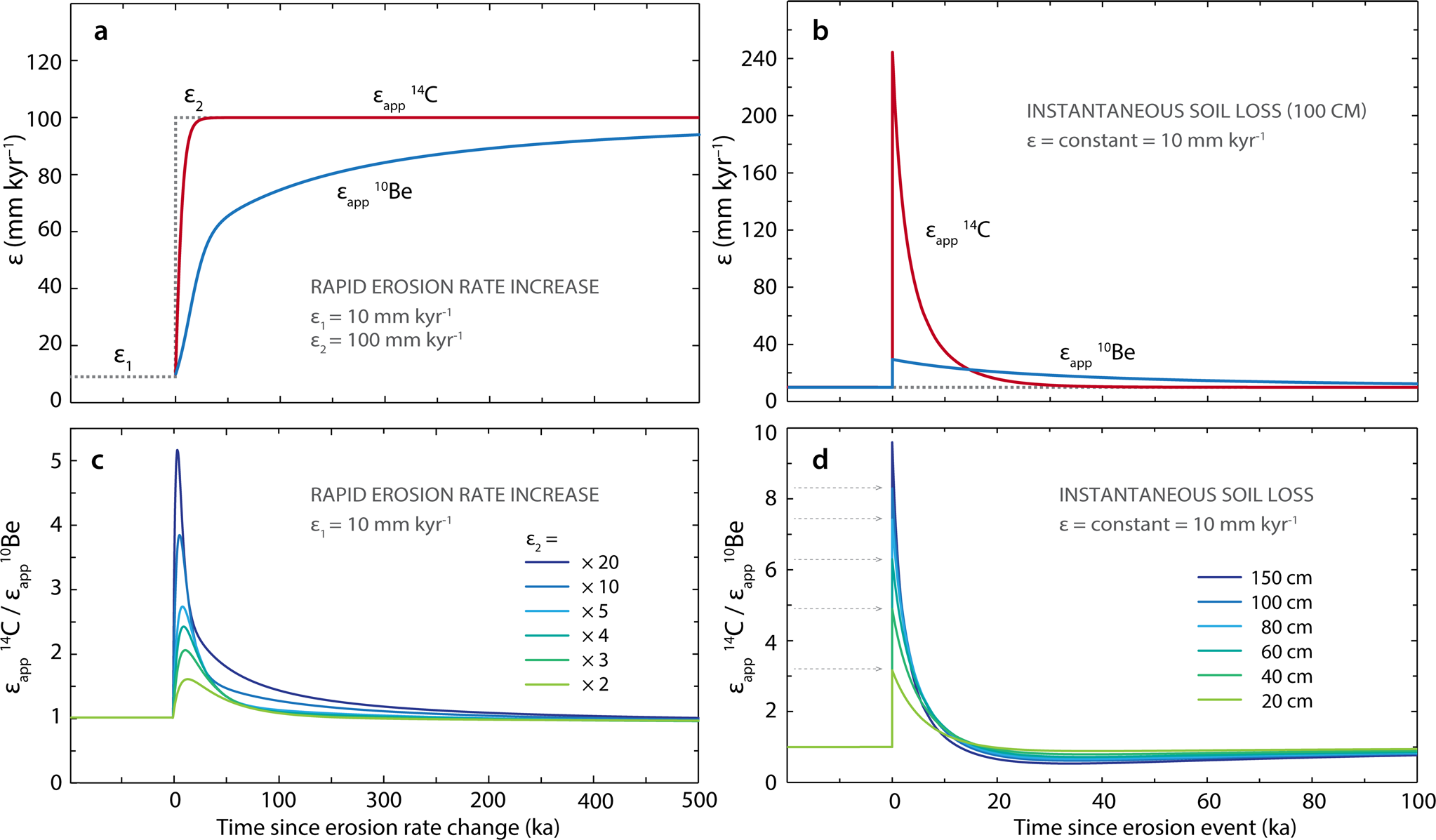

Thanks to their differing half-lives, apparent erosion rates (εapp) calculated from the measured 14C and 10Be surface concentrations will deviate in the case of a an acceleration in erosion rate (from ε1 to ε2), or b an instantaneous loss of a soil layer. As 14C is more sensitive to the erosional perturbation, the ratio of apparent erosion rates εapp14C/εapp10Be increases immediately after the perturbation (c, d). Such events are best detected over Holocene timescales and before 14C re-establishes isotopic steady state (after ~20 kyr). For better visibility, arrows in d mark the maximum of the εapp14C/εapp10Be for each given depth of soil.
