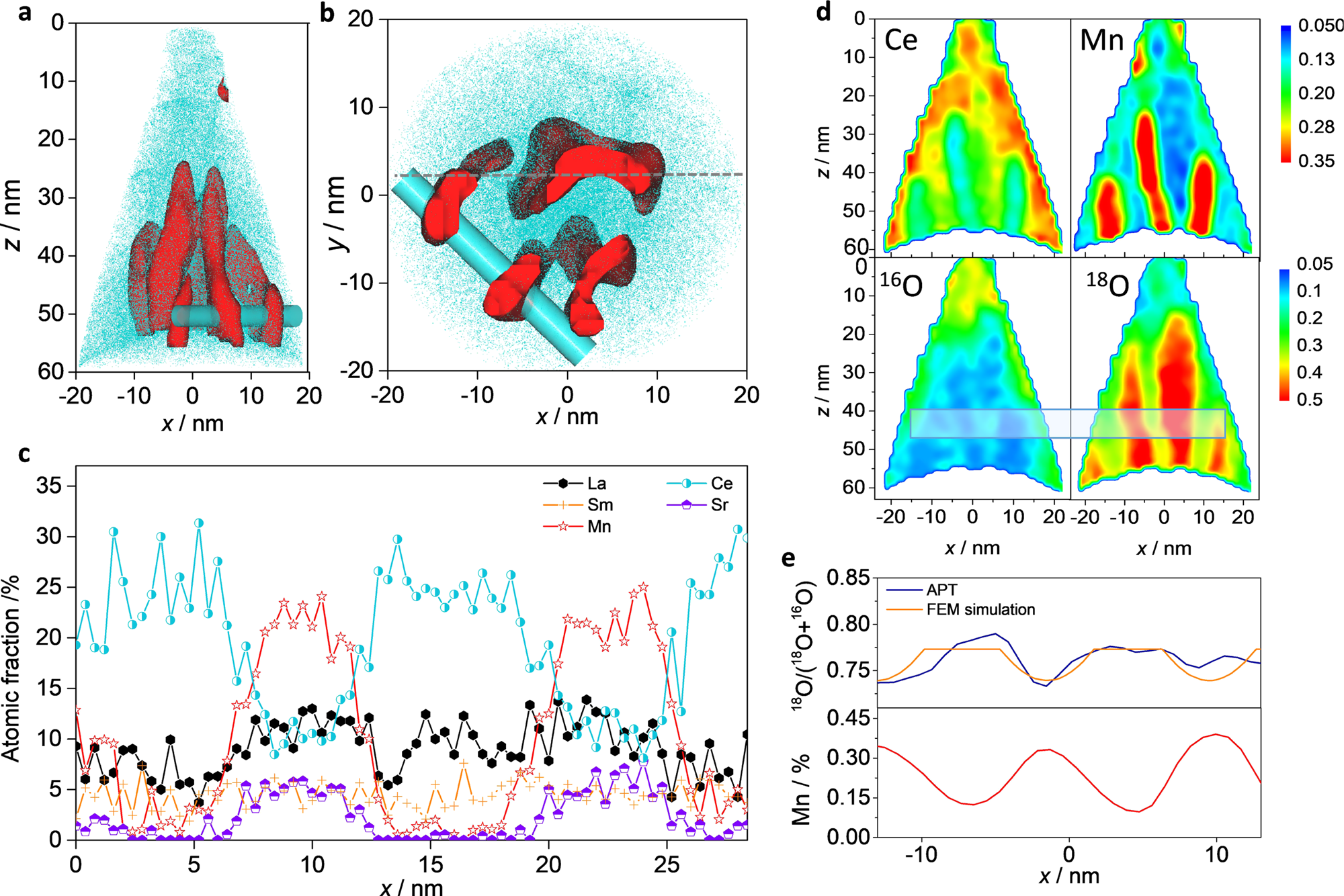

Fig. 2: APT on LSM-SDC.
From: A high-entropy manganite in an ordered nanocomposite for long-term application in solid oxide cells
Lateral (a) and bottom view (b) 3D renderings, highlighting the areas of LSM (red surface) and SDC (light blue dots) using a 30 at% La+Sr+Mn isoconcentration surface. c Cationic atomic fraction along the linescan indicated by the blue cylinder in (a) and (b). d Concentration color maps for Ce, Mn, 18O and 16O from the slice indicated by the gray dotted line in (b). e Top: Experimental (blue—obtained upon integration of the area in the rectangle in (d) and simulated (red) 18O fraction profiles. Bottom: Mn concentration profile.
