Fig. 2: Structural characterizations of LMO and LMO-TB.

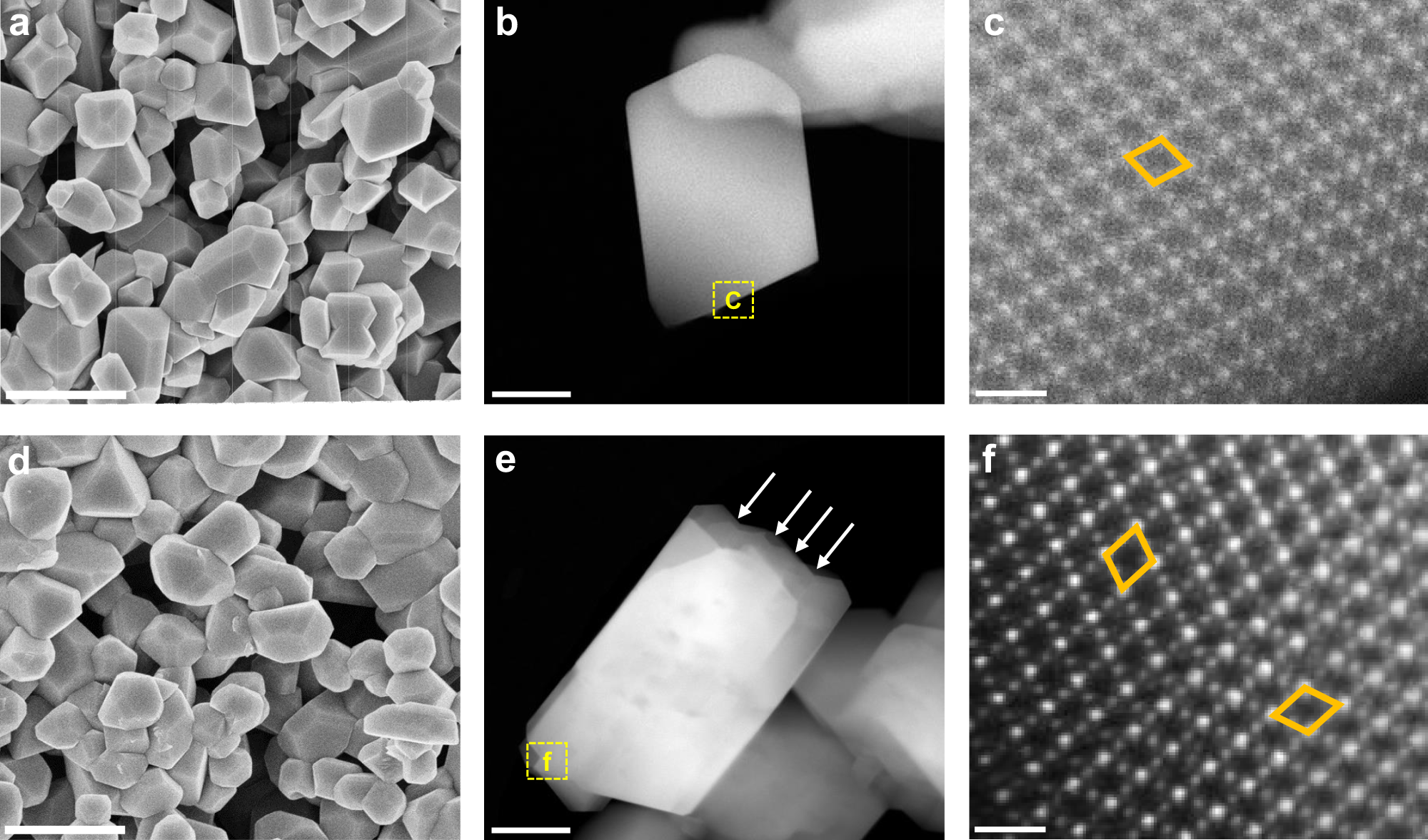

a, d SEM, b, e high-magnification HAADF STEM and c, f atomically resolved HAADF STEM images of b LMO and e LMO-TB. Only Mn atomic columns are visible, which are arranged in a rhombus shape. Scale bars, 500 nm (a, d); 100 nm (b, e); 0.5 nm (c, f).
