Fig. 6: Growth rate under rapid nutrient fluctuations is sensitive to timescale and higher than predicted by a null model based on single shifts.

From: A distinct growth physiology enhances bacterial growth under rapid nutrient fluctuations

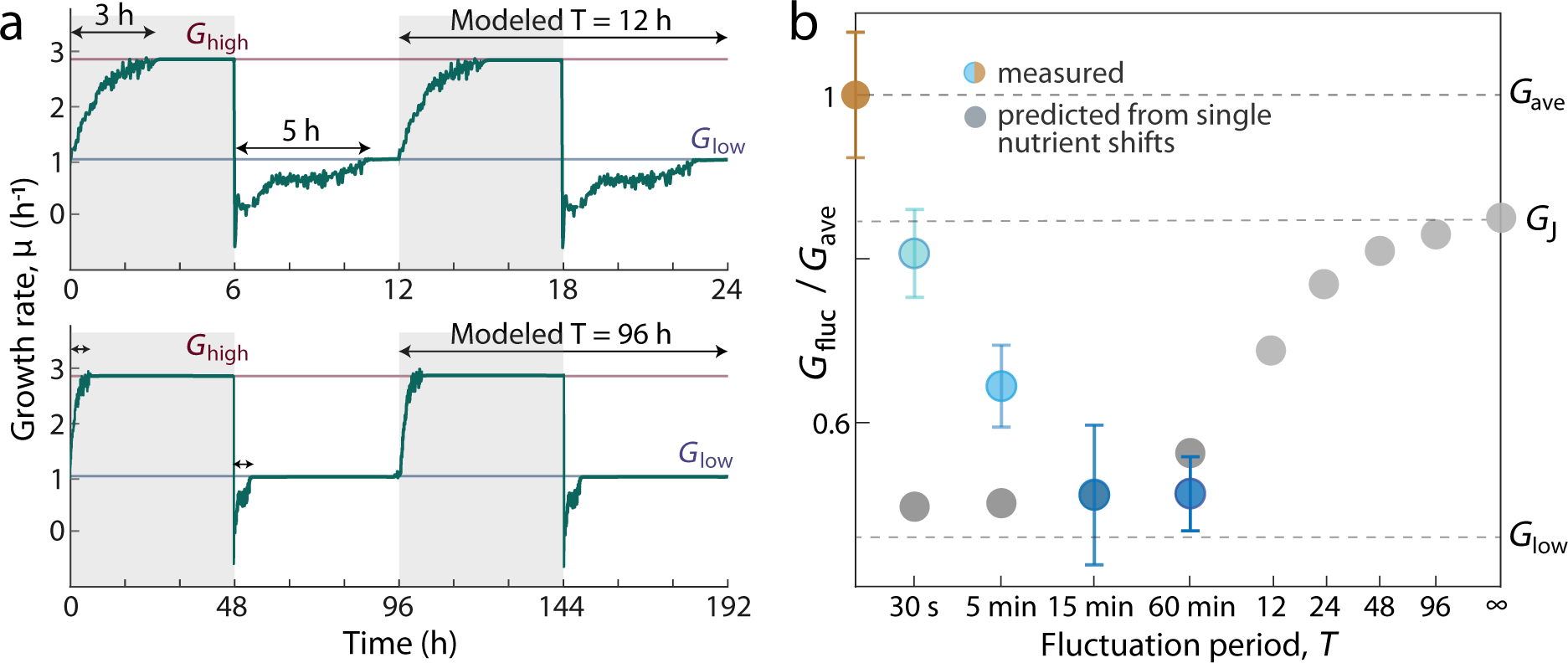

Fig. 6: Growth rate under rapid nutrient fluctuations is sensitive to timescale and higher than predicted by a null model based on single shifts.

a Instantaneous growth rate dynamics modeled using growth rate responses measured from single nutrient shifts. The dynamics modeled for two slow nutrient timescales (T = 12 and 96 h) are illustrated here. At these timescales, each phase of Chigh or Clow is substantially longer than the 3 or 5 h required for cells to reach either steady-state Ghigh or Glow after a single up- or downshift, respectively. The models used for growth rate dynamics at faster fluctuation timescales are fully described in Supplementary Fig. 10a, b and Construction of Null Model in the Supplementary information. For each modeled timescale, the growth rate dynamics were time-averaged to calculate the predicted average growth rates, Gfluc, plotted in (b). b Growth rate under rapid nutrient fluctuation (Gfluc, blue) is higher than predicted from data on single nutrient shifts between Chigh and Clow. The plot shows Gfluc as a fraction of the growth rate in the steady average nutrient environment (Gave; gold). Each measured point represents the time-averaged growth rate G and standard deviation of the mean among replicates (n = 3–4). Predicted values of Gfluc (gray) reach a maximum of GJ when the fluctuating nutrient timescale is infinitely long relative to the time required to transition from growth at Glow to Ghigh, and vice versa. The deviation between measured and predicted Gfluc differentiates the growth physiology at rapid fluctuation timescales from the growth behaviors expected from single shifts, and highlights the timescale-dependent nature of the growth advantage conferred by a physiology adapted for growth under rapid nutrient fluctuations.
