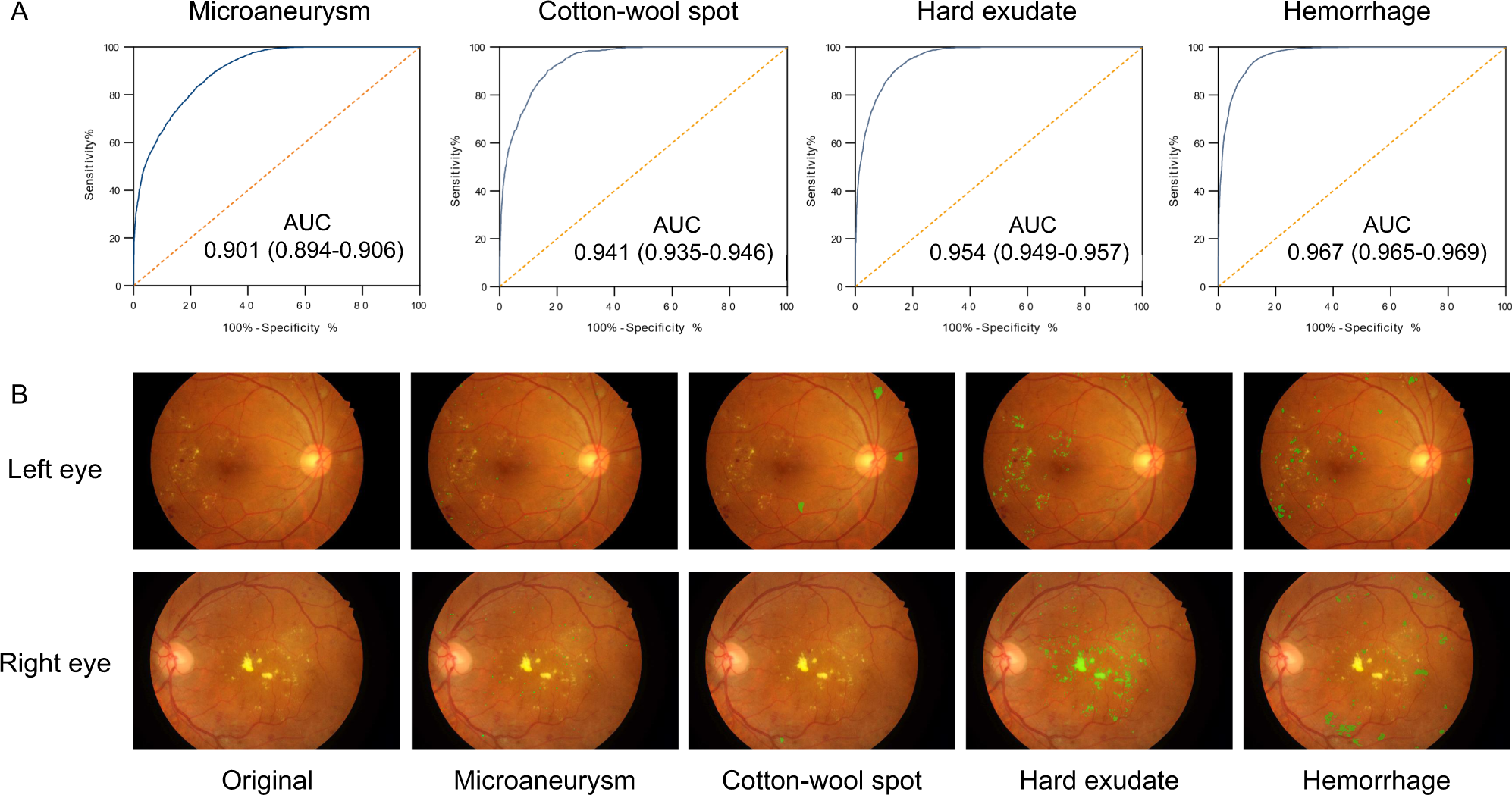

Fig. 3: Performance of the lesion-aware sub-network.
From: A deep learning system for detecting diabetic retinopathy across the disease spectrum
A Receiver operating characteristic curve demonstrating the performance of the lesion-aware sub-network for retinal lesion detection (n = 4621). B Example images of retinal lesion segmentation: microaneurysms, cotton-wool spots, hard exudates, and hemorrhages are highlighted using green regions.
