Fig. 1: Overall structure of the Sema3A/PlexinA4/Nrp1 complex.
From: Architecture of the Sema3A/PlexinA4/Neuropilin tripartite complex

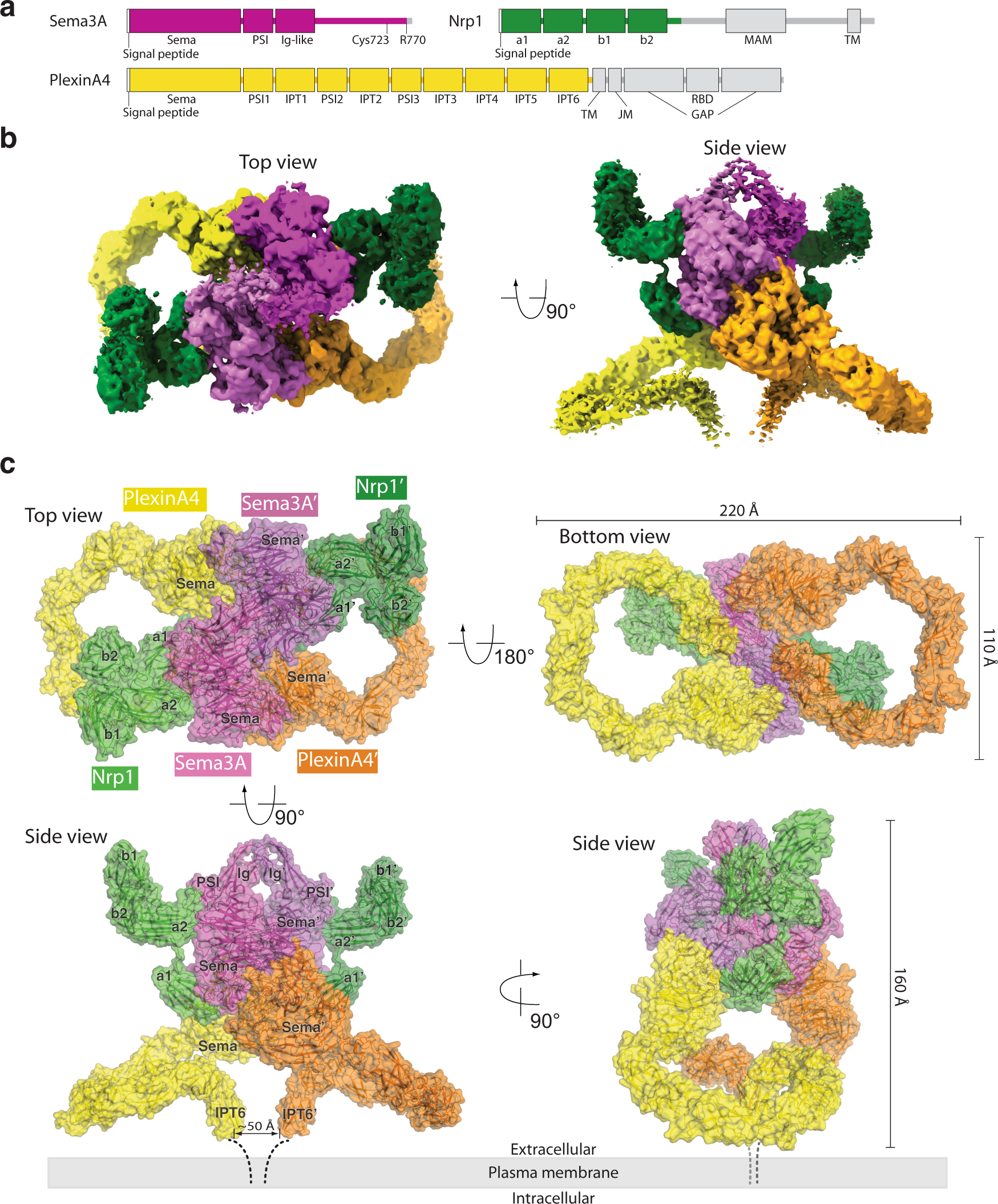

a Domain structures of mouse Sema3A, PlexinA4, and Nrp1. Colored parts indicate boundaries of constructs used in the structural analyses. b Overview of the cryo-EM map of the Sema3A/PlexinA4/Nrp1 complex. The color scheme is the same as a. c Atomic model of the Sema3A/PlexinA4/Nrp1 complex based the cryo-EM reconstruction.
