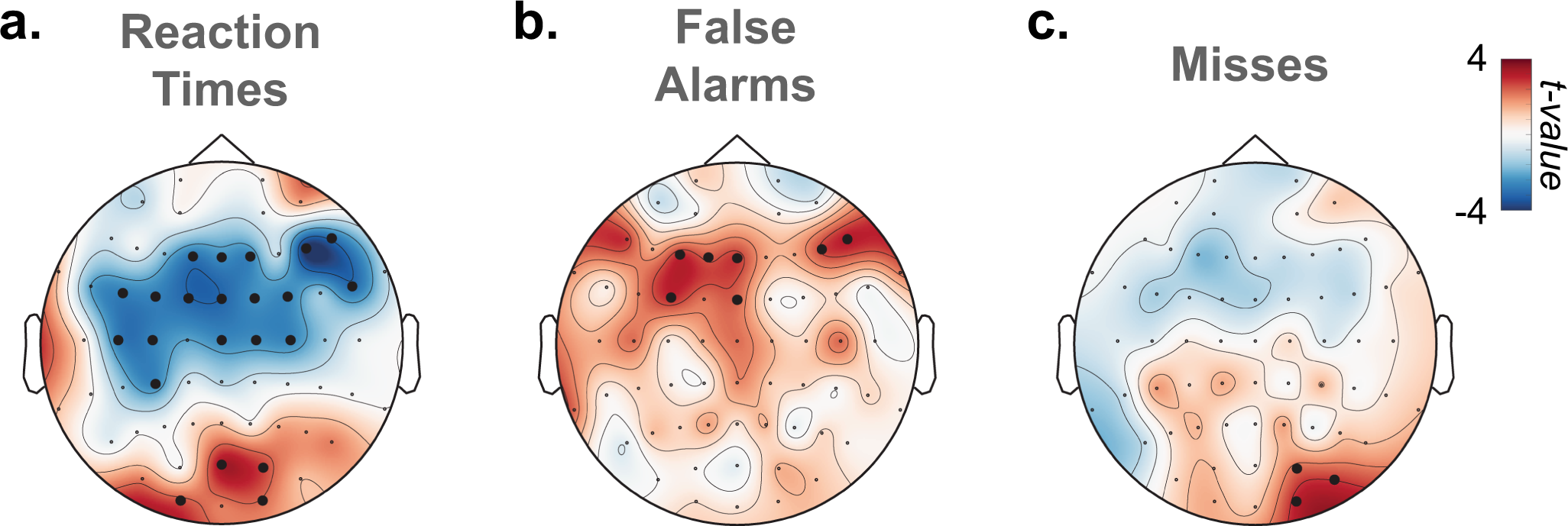

Fig. 5: Local occurrences of slow waves are associated with modulations of performance.
From: Predicting lapses of attention with sleep-like slow waves
Mixed-effects models were used to quantify the correlation between slow-wave occurrence and reaction times (a), false alarms (b) and misses (c) at the single-trial level. Topographies show the scalp distribution of the associated t values (N = 26 participants). Black dots denote significant clusters of electrodes (pcluster <0.05 corrected for three comparisons using a Bonferroni approach, see “Methods”).
