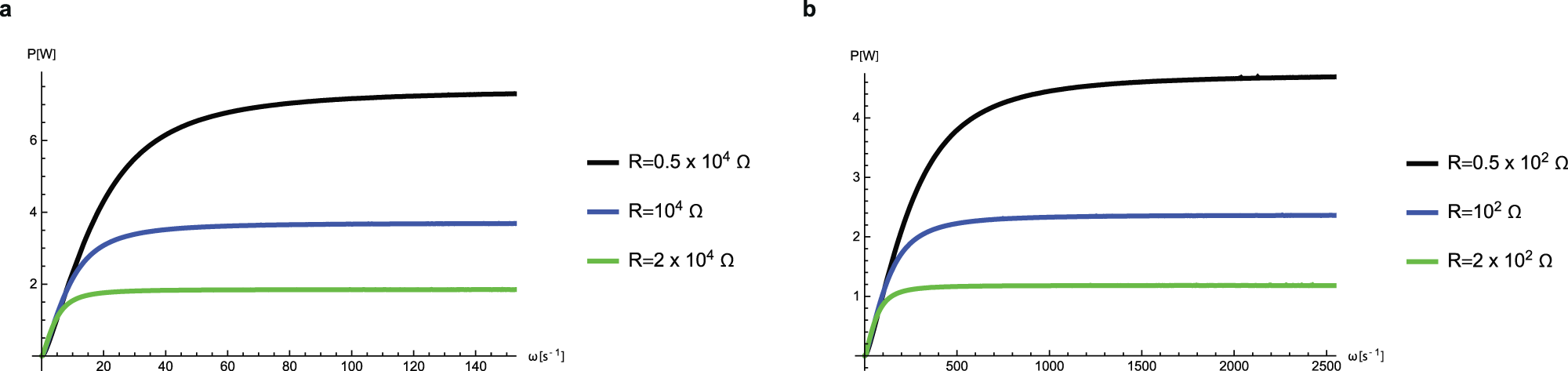

Fig. 8: Average power profile as a function of rotational frequency for different loads.

From: Theoretical demonstration of a capacitive rotor for generation of alternating current from mechanical motion

Fig. 8: Average power profile as a function of rotational frequency for different loads.

Curves are plotted for: a PC with \(N={10}^{2}\) stages and priming voltage \({V}_{{\rm{ref}}}=50{\rm{V}}\); b IL with \(N={10}^{3}\) stages and priming voltage \({V}_{{\rm{ref}}}=4{\rm{V}}\). And, again, the parameter domains are different for a and b; the arguments for this are explained in the caption of Fig. 6.
