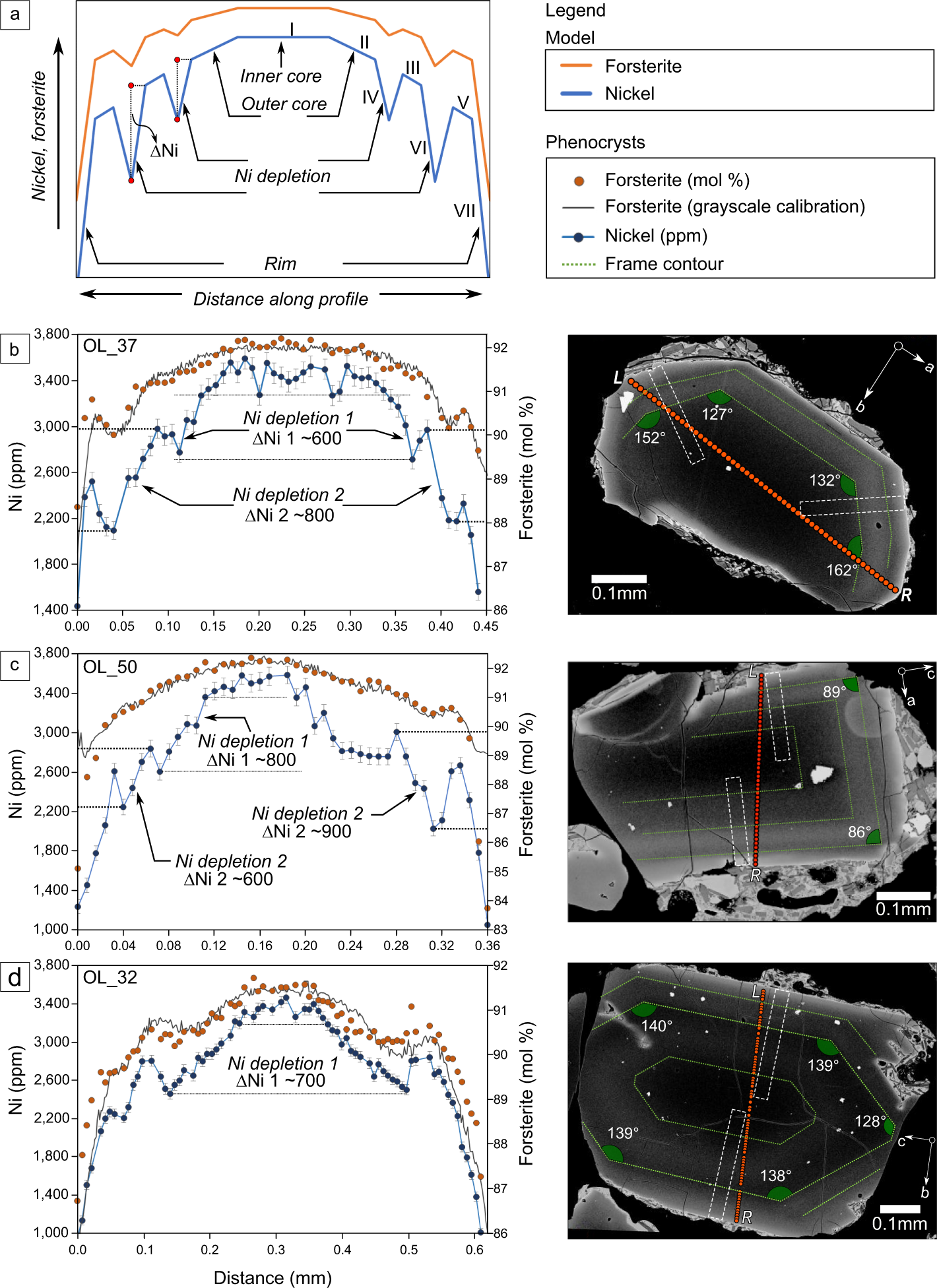

Fig. 2: A conceptual interpretation of major (Fo content) and minor (Ni) element zoning preserved in olivine phenocrysts (group 1 and 2) from Los Hornitos.
From: Out-of-sequence skeletal growth causing oscillatory zoning in arc olivines
a Schematic model of the Fo and Ni variations explained by four main zoning structures consisting of an inner and outer core, Ni depletions and rim. Roman numerals refer to the growth sequence of the crystal. b–d Fo (orange; right axis) and Ni (blue; left axis) contents along rim-to-rim traverses along three mature olivines sectioned normal to c, b, and a axis, respectively, with their BSE images and the analyzed traverses. Error bars on Ni data represent 1 sigma. Similar magnitudes of Ni depletions (∆Ni) are observed among the crystals. Segmented green lines above the images enhance the position of chemical reversals, which reproduce the euhedral olivine morphology, allowing the crystal to be oriented (see raw images and orientation parameters in Supplementary Information Fig. S6). White segmented blocks show the location of diffusion profiles for timescale calculations. Olivine composition data can be found in Supplementary Data 1.
