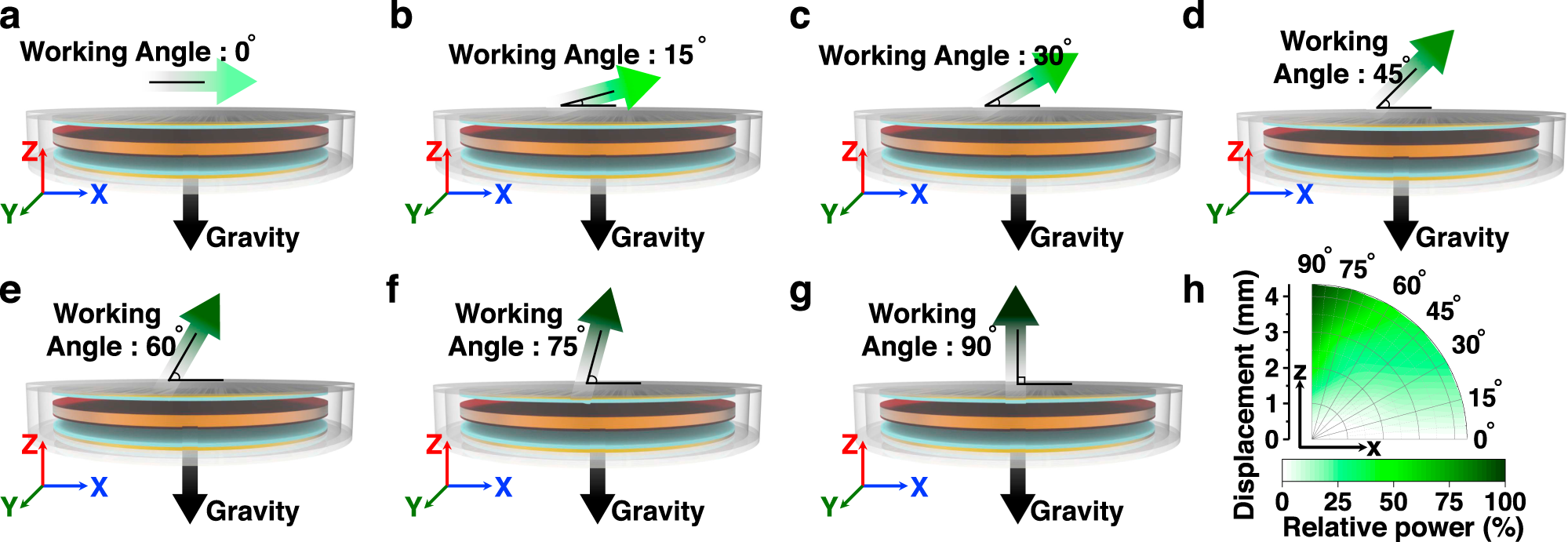

Fig. 3: I-TENG power performance according to displacement and working angle.
From: Self-rechargeable cardiac pacemaker system with triboelectric nanogenerators
a–g Demonstration that the I-TENG’s displacement direction depends on the working angle. h The output voltage distribution of the I-TENG according to displacement and working angle of movement.
