Fig. 5: Individual-level module heatmap.

From: Development of a fixed module repertoire for the analysis and interpretation of blood transcriptome data

Fig. 5: Individual-level module heatmap.

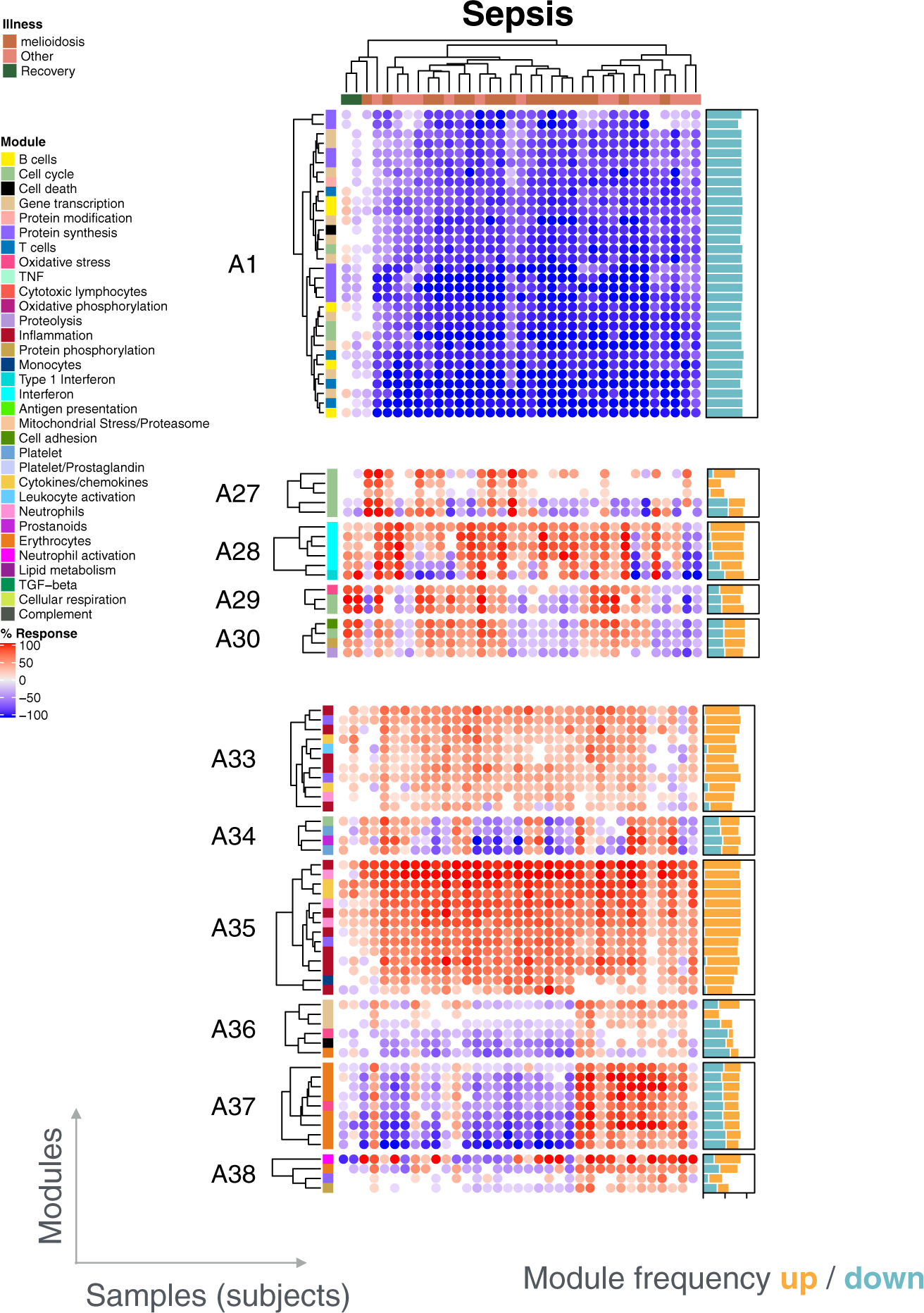

Changes in transcript abundance were determined at the individual level across all modules constituting the repertoire. These changes are represented on a heatmap, where an increase in abundance of a given module is represented in red, and a decrease in abundance is represented in blue. The subjects are organized as columns and the modules as rows. The order on the heat map was determined by hierarchical clustering.
