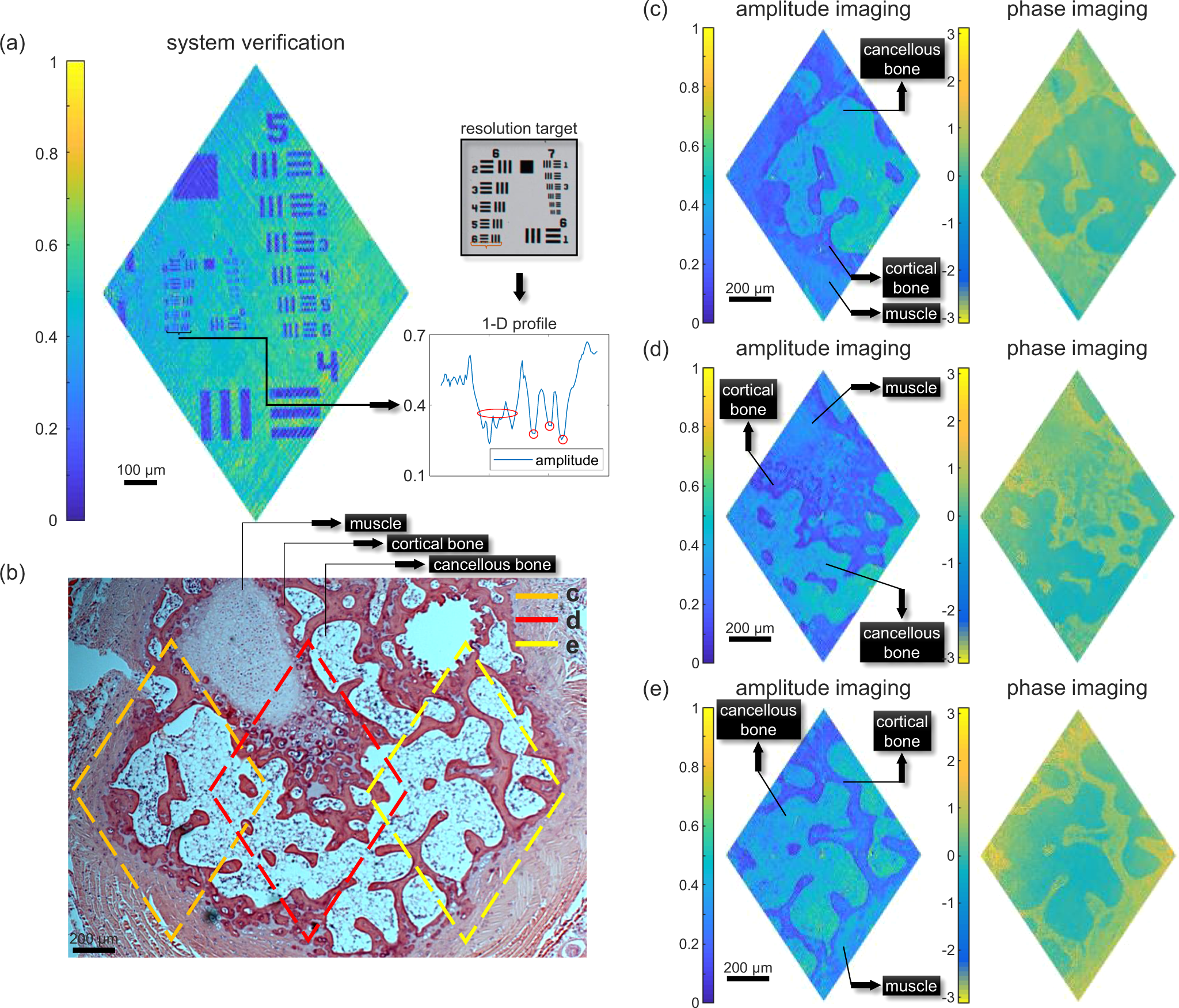

Fig. 2: Performance of the high-throughput SPH with stained tissue from mouse tails in high-resolution mode.
From: Imaging biological tissue with high-throughput single-pixel compressive holography
a Reconstructed amplitude image of a resolution target. The upper inset: the image of the resolution target (containing groups 6 and 7) captured by a conventional microscope; the lower inset: the corresponding 1D profile of element 6 of group 6. b The image of a slice of stained tissue from mouse tails, captured using a conventional microscope. Three diamond-shaped boxes represent the area being measured by the holographic system. c–e The reconstructed amplitude and phase images for different parts of the stained tissue. The corresponding scale bar is 200 μm.
