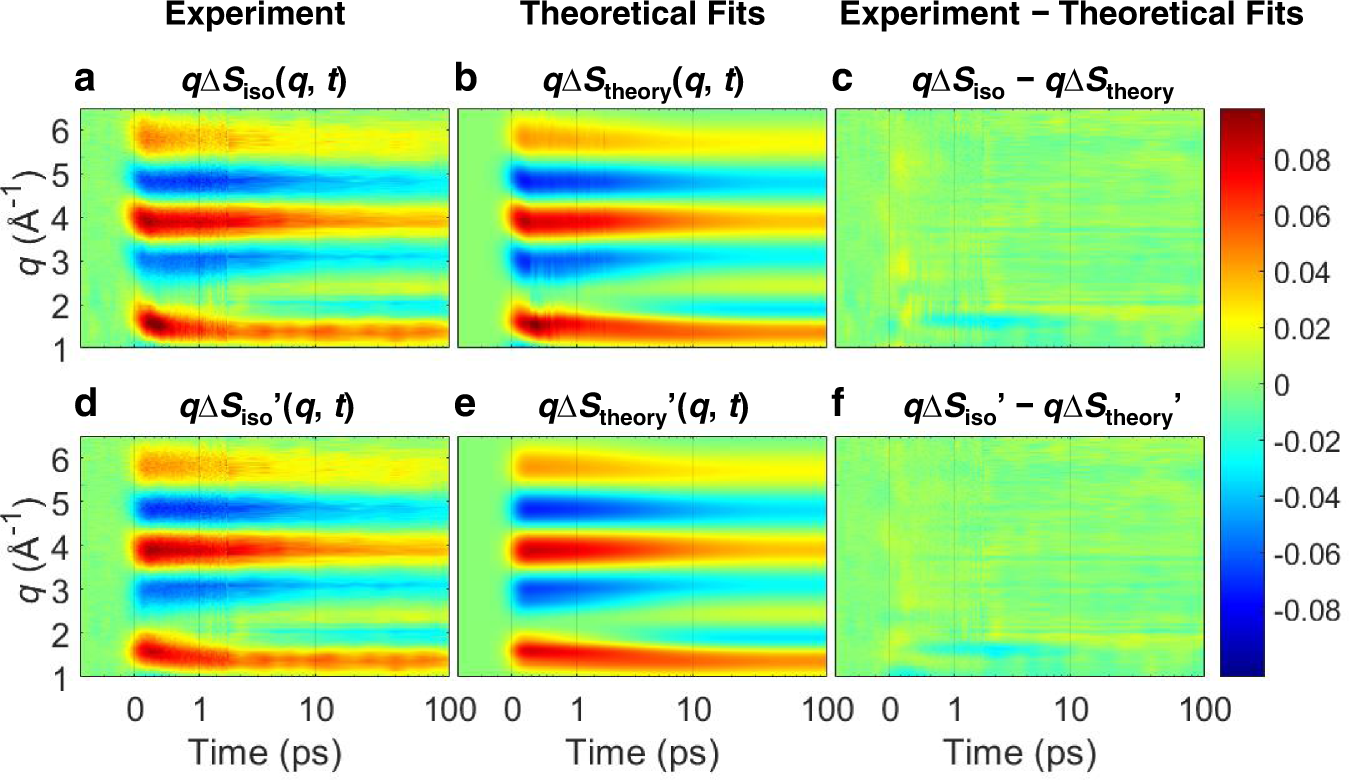

Fig. 2: Experimentally measured fs-TRXL signals with theoretical fit results.
From: Filming ultrafast roaming-mediated isomerization of bismuth triiodide in solution
a Experimental qΔSiso(q, t). b Corresponding theoretical fit results, qΔStheory(q, t), obtained from the global fit combined with structural analysis. c Residuals obtained by subtracting theoretical fits from the experimental data. d The extracted signals of exponential kinetics, qΔSiso’(q, t). e Corresponding theoretical fit results, qΔStheory’(q, t), obtained from the global fit combined with structural analysis. f Residuals obtained by subtracting theoretical fits from the experimental data. All plots share a color scale representing the amplitude of the signal in absolute electronic units per solvent molecule. Source data for panels (a) and (d) are provided as a Source Data file.
