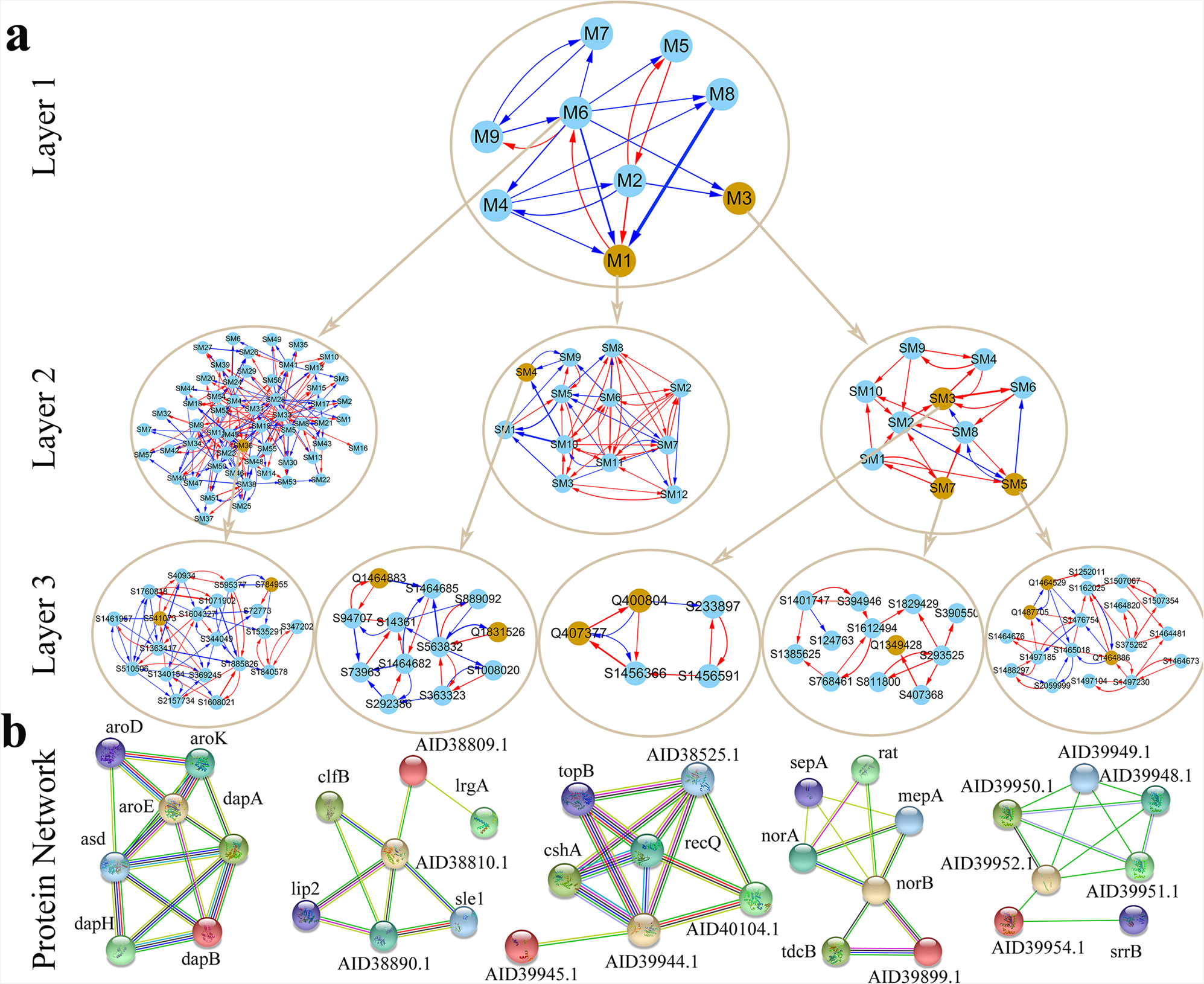

Fig. 6: Multilayer genetic networks reconstructed from a high-dimensional genome-wide SNP data in the biotic GWAS experiment.
From: Inferring multilayer interactome networks shaping phenotypic plasticity and evolution
a On the top is the nine-node network at the first layer among nine modules each presenting a network community. Under the first-layer network are the networks at the second layer reconstructed from submodules of leader module M6 and QTL-containing modules M1 and M3 (highlighted). The second-layer networks go to the third-layer networks at the SNP level from particular submodules. b Interaction networks among proteins (with names indicated) annotated from SNP networks, where the strength of protein interaction is proportional to the thickness of linked line.
