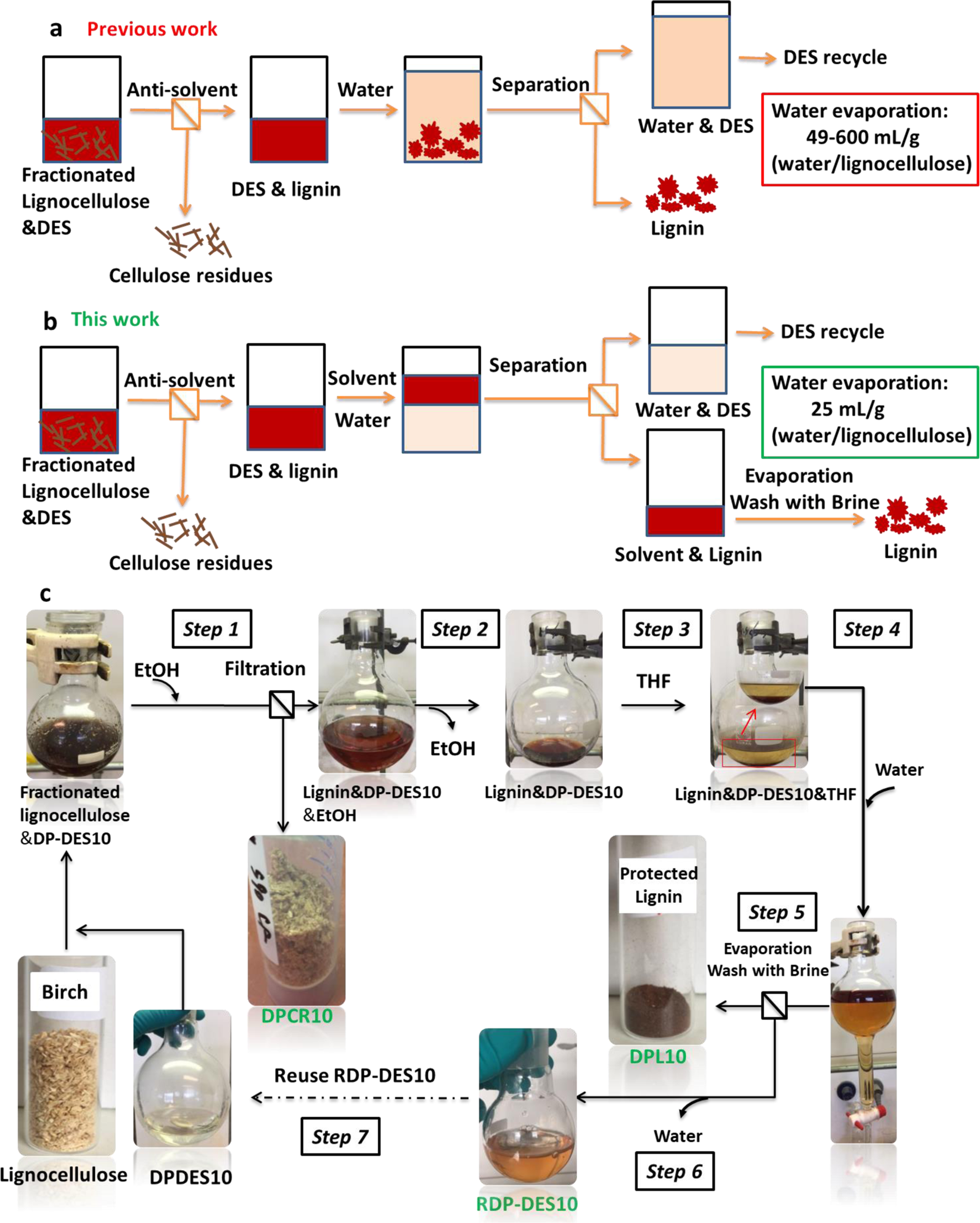

Fig. 5: Lignocellulose fractionation and lignin isolation protocol in DP-DES.

a Traditional lignin isolation method from DES. Typically, after the separation of cellulose, lignin is precipitated from DES by the addition of water followed by filtration or centrifugation/decantation, and the DES is recovered by water removal. b The lignin isolation method is based on liquid/liquid extraction from DES. After adding organic solvent and a small amount of water, lignin is selectively extracted from a concentrated ionic aqueous DES solution and is subsequently recovered after evaporating the organic solvent. High purity DES is recycled by water removal. c Systematic birch lignocellulose fractionation protocol in DP-DES10 (ChCl, 120 mmol, 16.8 g: EG, 240 mmol, 14.4 g: 10 wt% OA, 25 mmol, 3.2 g) by steps. Carbohydrate-rich residues are isolated using ethanol as an anti-solvent after filtration (Step 1). Ethanol is evaporated to obtain a lignin/DES mixture (Step 2). Upon addition of THF as well as water, a brown-colored THF phase containing lignin is clearly separated from the aqueous phase containing DES. The lignin is isolated by extraction of an aqueous DES phase with THF (Steps 3 and 4). DPL10 was obtained as powder after solvent removal and precipitated in brine (Step 5). DP-DES10 is recycled by removal of water by distillation (Step 6). The recycled DP-DES10 was characterized by yield (mass percentage to original DP-DES10) and purity (Supplementary Note 6.1.3) and reused for a second run (Step 7).
