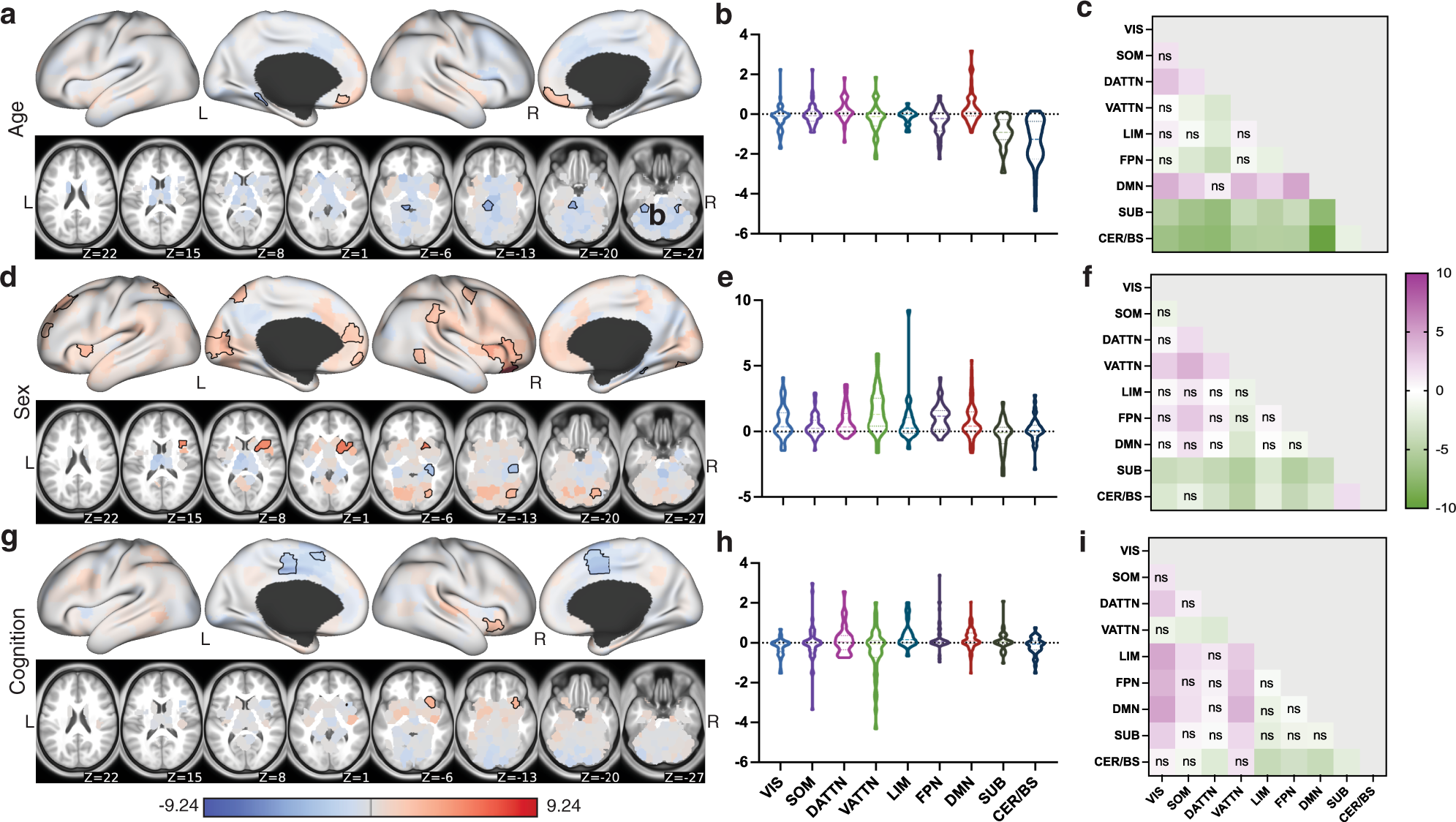

Fig. 4: Associations between regional SC–FC coupling and age, sex, and total cognition.
From: Heritability and interindividual variability of regional structure-function coupling
a, d, and g display regional β-values from the GLM quantifying associations between SC–FC coupling and age, sex (blue indicates higher SC–FC coupling in females, red higher in males) and total cognition scores, respectively. Areas with significant β-values (after correction) are outlined in black. b, e, and h show the network-wise β-values for age, sex and total cognition, respectively. c, f, and i show the t-statistics for all pairwise comparisons of the associations across networks, calculated as the network on the y-axis versus the network on the x-axis. One-sided p-values were calculated (see detailed description in the “Methods” section). Those comparisons with FDR corrected p > 0.05 are marked with ns.
