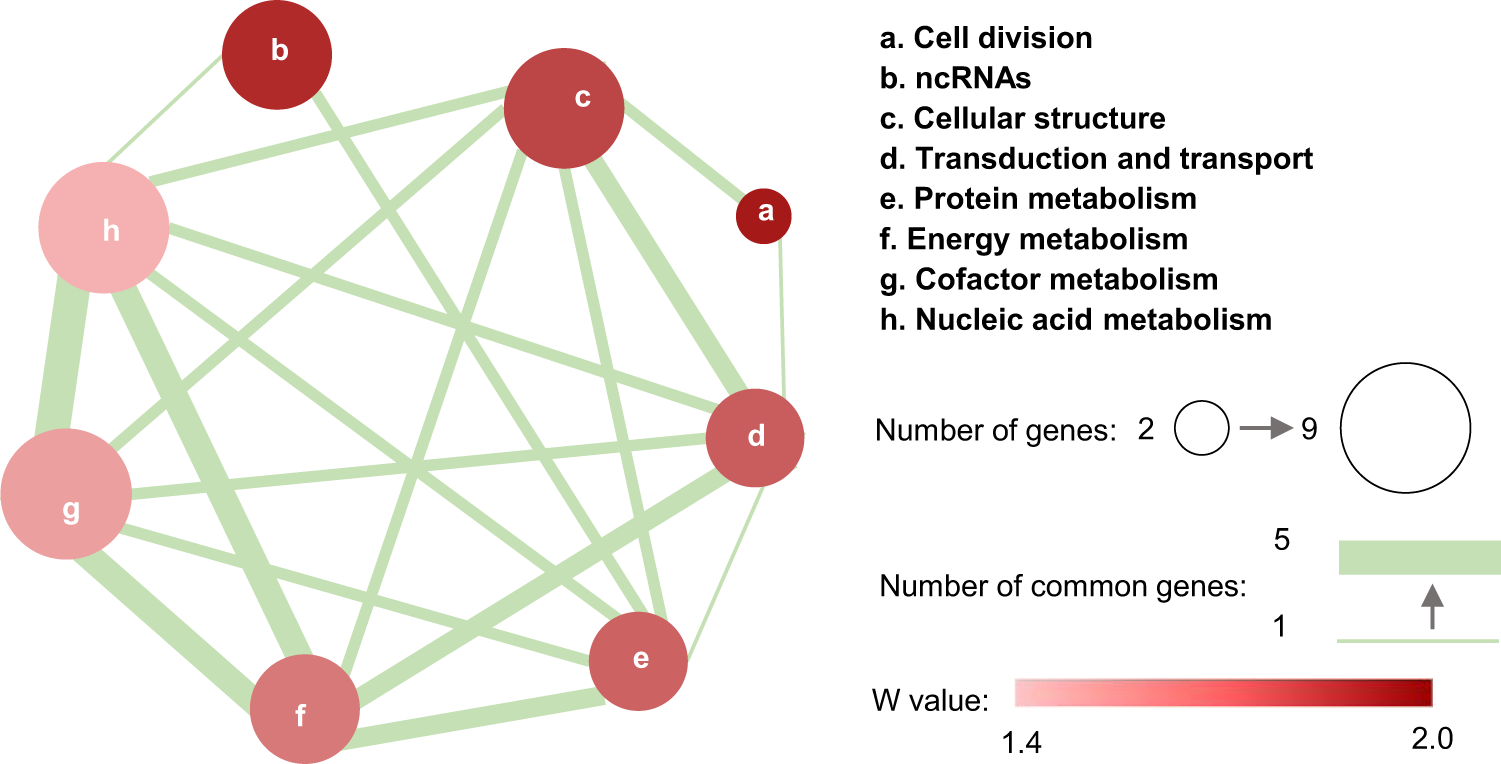

Fig. 6: Functional network plot of the beneficial genes derived from omics analyses.
From: Genome-scale target identification in Escherichia coli for high-titer production of free fatty acids
The size of the node represents the number of genes within the function set. The node color represents the W value of the function set. The thickness of the line indicates the number of genes overlapping between two function sets. The W value was calculated by averaging the maximum FFAs ratio of the engineered strains corresponding to each gene in the function set. Genes and the FFAs ratio are shown in Supplementary Data 3. Source data are provided as a Source Data file.
