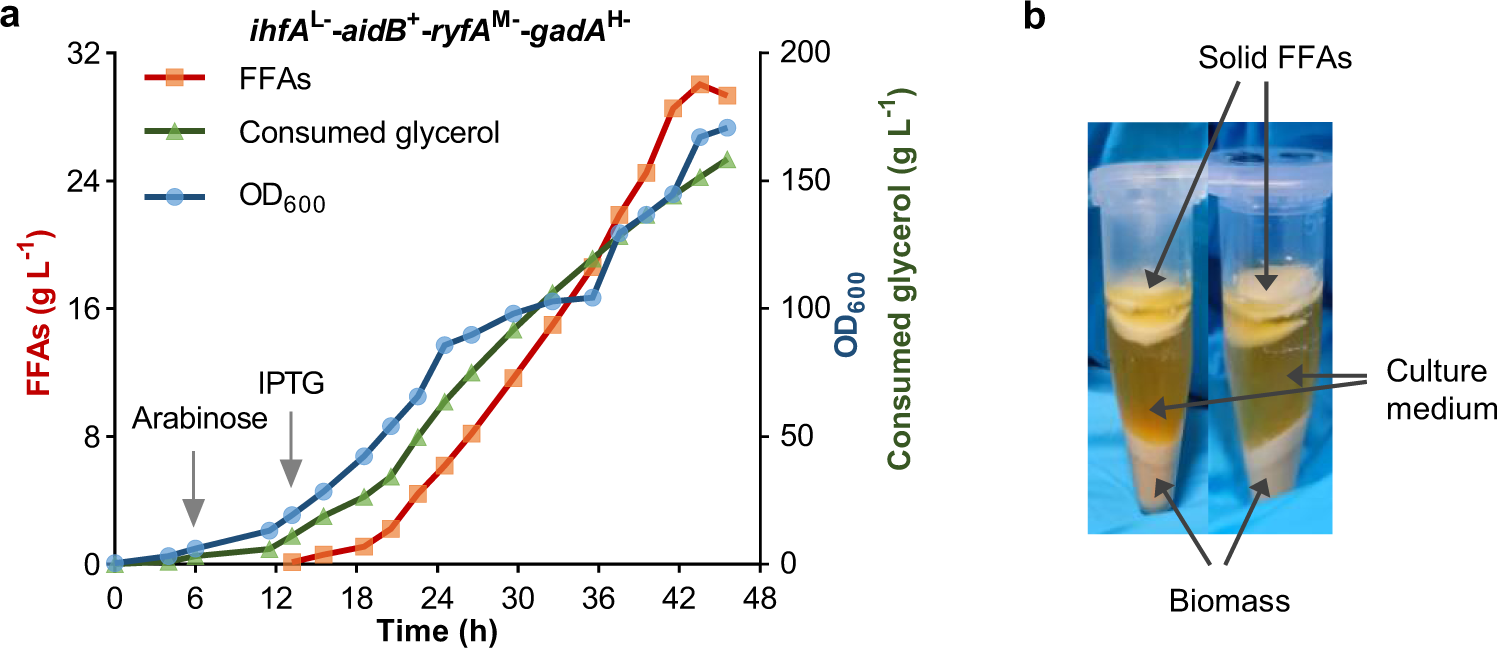

Fig. 8: Fed-batch fermentation of the ihfAL−-aidB+-ryfAM−-gadAH− strain for FFAs production in a 5 L bioreactor.
From: Genome-scale target identification in Escherichia coli for high-titer production of free fatty acids
a Time courses of cell growth, glycerol consumption, and FFAs production of the ihfAL−-aidB+-ryfAM−-gadAH− strain during fed-batch fermentation (Batch 1). The result of a duplicate fermentation (Batch 2) is shown in Supplementary Fig. 9b, exhibiting a similar titer and productivity. b Solid FFAs layer after centrifugation. After fermentation, 1 mL of sample was picked up and centrifuged at 5000 × g for 15 min. Source data underlying (a) are provided as a Source Data file.
