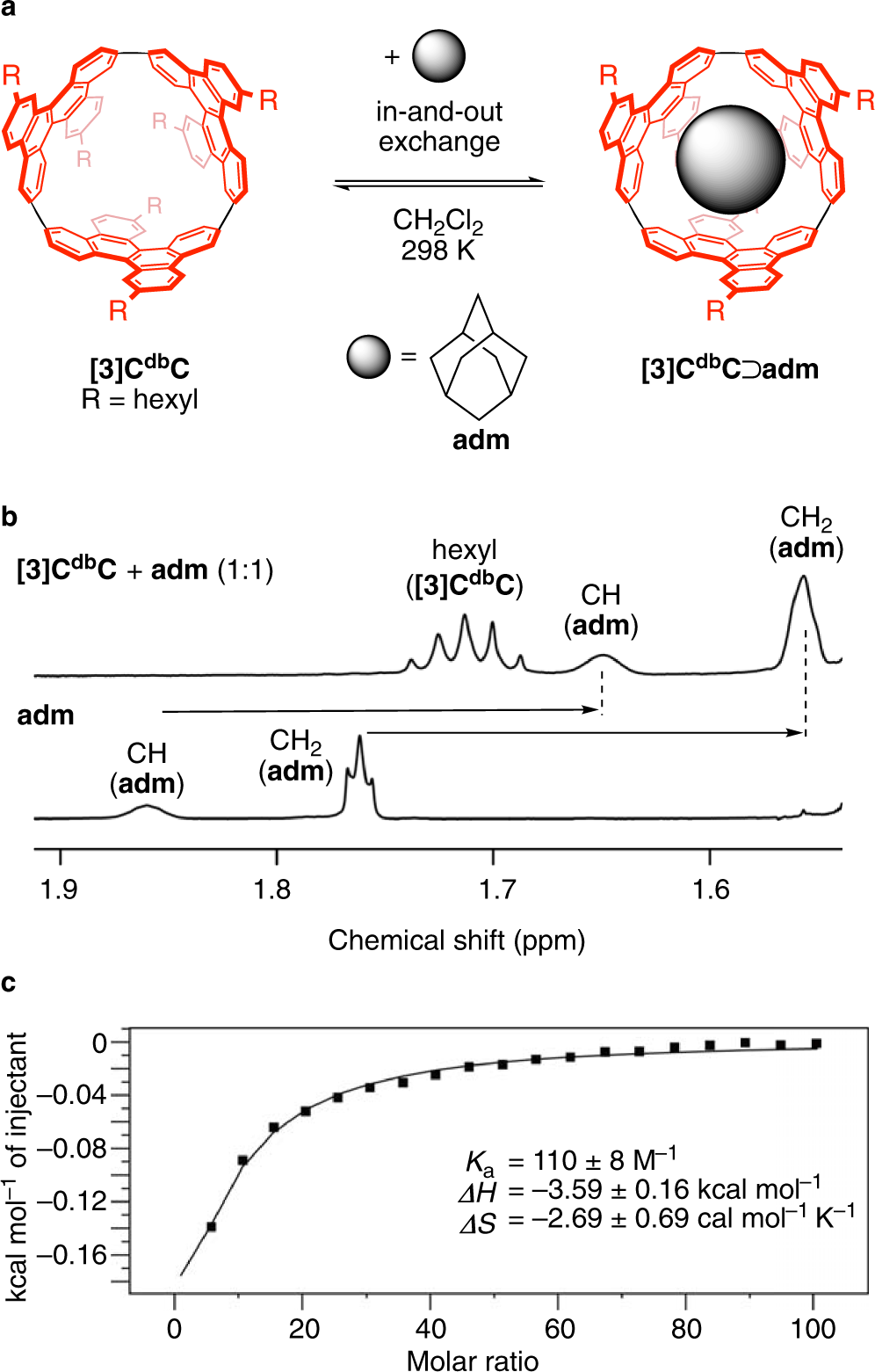

Fig. 2: Assembly of a hybrid nanocarbon peapod in a molecular form.
From: A hybrid molecular peapod of sp2- and sp3-nanocarbons enabling ultrafast terahertz rotations
a Association equilibrium of the nanocarbon hybrid of [3]CdbC⊃adm. b 1H NMR spectra of a mixture of [3]CdbC + adm (1:1) and free adm in CD2Cl2 at 298 K showing high-field shifts of resonances of adm. A spectrum of the whole 1H region is shown in Supplementary Fig. 4. c Representative ITC data in CH2Cl2 at 298 K. Thermodynamic parameters are obtained from triplicate titrations (Supplementary Fig. 5), and the average values are shown with standard deviations.
